Feature： |
|
|
1. The practical work table raised the auxiliary work efficiency effectively.
2. New exempts the maintenance motor with moisture-proof, the dustproof protection.
3. Electron steering provides the precise control.
4. The self-braking causes the operation to be safer.

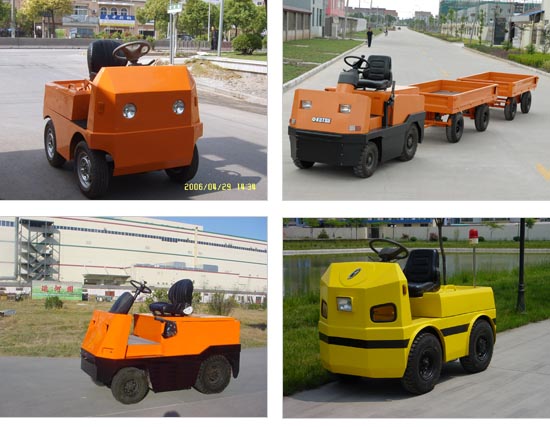

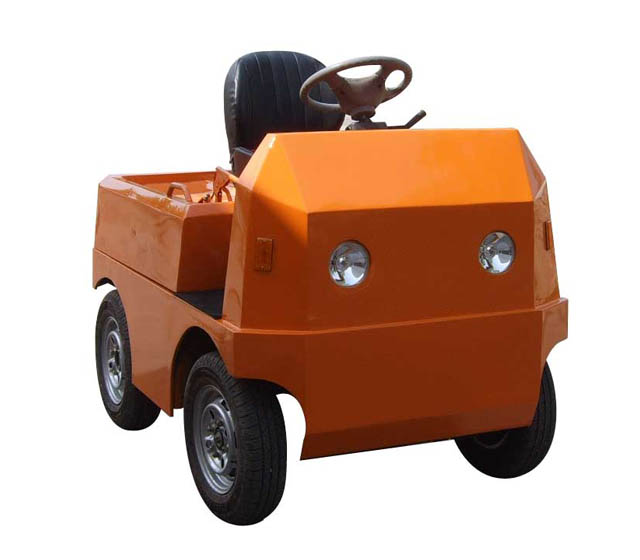

5. Special design’s the space lets driver’s work be more relaxed comfortably.
6. Seater electric tow，Convenience operation.
|
|
|
Specifications： |
|
|
| Model |
BL-Q02 |
BL-Q05 |
BL-Q08 |
BL-Q10 |
BL-Q10B |
| Type |
4-Wheel, Back Drive, Hydraulic Brake System, MOFSET, Hand Brake |
| Rated Tow Power |
N |
800N |
1100N |
1100N |
2500N |
2500N |
| Towed Mass |
KG |
2000 |
5000 |
8000 |
10000 |
10000 |
| Drive Speed |
(Full-Loaded) KM/H |
11 |
10 |
8 |
8 |
8 |
| Turning Radius |
MM |
2200 |
2200 |
2200 |
2200 |
2200 |
| Gradeability |
(Full-Loaded) (%×m) |
10%×12m |
10%×12m |
10%×12m |
10%×12m |
10%×12m |
| Load Distribute |
Frond Wheel KG |
420 |
492 |
492 |
630 |
630 |
| Rear Wheel KG |
520 |
608 |
608 |
1180 |
1180 |
|
Service Weight KG |
940 |
1100 |
1100 |
1810 |
1810 |
| Load Rate Front: Back |
0.45：0.55 |
0.45：0.55 |
0.45：0.55 |
0.35：0.65 |
0.35：0.65 |
| Model |
XQ-3-1 |
XQ-4.5 |
XQ-4.5 |
XQ-6.3 |
XQ-6.3 |
| Rated Power |
KW |
3 |
4.5 |
4.5 |
6.3 |
6.3 |
| Rated Voltage |
V |
45 |
45 |
45 |
45 |
45 |
| Rated Current |
A |
87 |
120 |
120 |
173 |
173 |
| Rated rotate speed |
EPM |
1780 |
1600 |
1600 |
1200 |
1200 |
| Excitation system |
Series Excitation motor |
| Overall Length |
MM |
1700 |
1700 |
1700 |
2095 |
2095 |
| Overall Width |
MM |
1130 |
1130 |
1130 |
1080 |
1080 |
| Overall Height |
MM |
1300 |
1300 |
1300 |
1390 |
1390 |
| Wheel base |
MM |
1030 |
1030 |
1030 |
1150 |
1150 |
| Tread |
Front Wheel |
980 |
980 |
980 |
920 |
920 |
| Rear Wheel |
1000 |
1000 |
1000 |
890 |
890 |
| Ground Clearance |
|
110 |
110 |
110 |
142 |
142 |
| Tow Rod Height |
MM |
320 |
320 |
320 |
365 |
365 |
| Tire |
Front Wheel |
145/70-R12/×2 |
145/70-R12×2 |
145/70-R12×2 |
6.50-10/×2 |
6.50-10/×2 |
| Rear Wheel |
145/70-R12/×2 |
145/70-R12×2 |
145/70-R12×2 |
6.50-10/×2 |
6.50-10/×2 | |
|
|
|
|
