Name:OKUTSU EPQ20B EPQ30B
Click to view larger
  Feature:

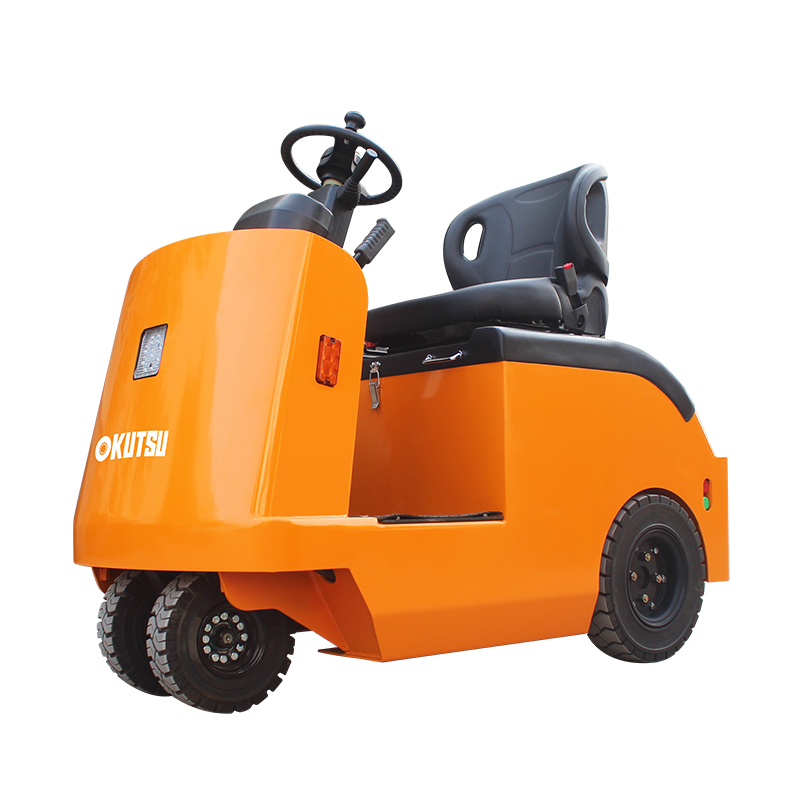

OKUTSU EPQ20B EPQ30B Rider-type electric towing tractor

1. Customizable (color, tonnage, etc.) and non-standard (lengthened, with canopy, etc.) according to customer needs;
2. CURTIS electronic control, multiple automatic protection systems for the controller;
3. Electronic power steering makes operation more comfortable;
4. Equipped with a power meter to remind the operator to charge in time and protect the battery;
5. Solid rubber tires (optional non-marking rubber tires), wear-resistant and durable, suitable for a variety of road surfaces;
6. AC drive system, large torque, strong climbing ability, strong power, and large traction, ensuring that the car can still run smoothly on uneven roads and slopes.

  Specifications:
Model EPQ20B EPQ30B
Operating Type 电动座驾式
Rider-type
电动座驾式
Rider-type
Max Traction Weight kg 2000 3000
Rated Pulling Force N 500 750
Weight With Battery (Battery Weight) kg 850(180) 880(205)
Wheel Type Solid rubber tire Solid rubber tire
Overall Size mm 1710*845*1385 1710*845*1385
Seat Height mm 880 880
Traction Hook Height mm 300/380 300/380
Drive Speed load/unload km/h 5 / 7 5 / 7
Max Gradeability load/ unload % 8 / 10 6 / 8
Turning Radius mm 1460 1460
Drive Motor Power kw 2.5 2.5
Battery voltage/ nominal capacity(V/Ah) V/Ah 24 / 210 24 / 240
Charger V/A 24 / 30 24 / 30
