| 1 |

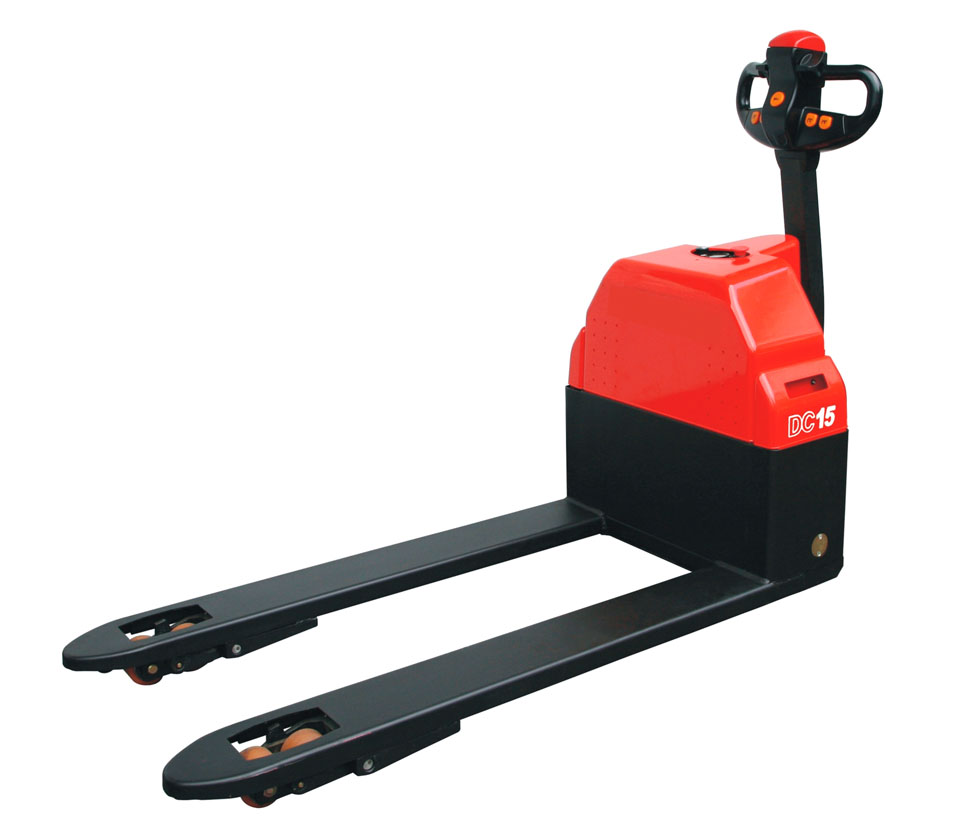

Model |
|
CBD15 |
| 2 |
Configuration No. |
|
170G |
| 3 |
Load capacity |
kg |
1500 |
| 4 |
Load center |
mm |
600 |
| 5 |
Wheel base |
mm |
1301 |
| 6 |
Operating type |
|
步行式
Walkie |
| |
Wheels |
|
|
| 7 |
Wheels type |
|
PU |
| 8 |
Wheel quantity
Driving wheel/Balance wheel /Bearing wheel |
|
1/0/4 |
| 9 |
Driving wheel size |
mm |
￠252*67 |
| 10 |
Balance wheel size |
mm |
￠ 84×70
（双轮 /Double wheels ） |
| 11 |
Bearing wheel size |
mm |
- |
| |
Dimension |
|
|
| 12 |
Min.fork lowered height |
mm |
85 |
| 13 |
Max.fork lifting height |
mm |
205 |
| 14 |
Max.lifting height |
mm |
120 |
| 15 |
Outside width between forks |
mm |
550 /600/650/685 |
| 16 |
Inside width between forks |
|
230 /280/330/365 |
| 17 |
Fork length |
mm |
1150 /1200 |
| 18 |
Fork width |
mm |
160 |
| 19 |
Fork thickness |
mm |
55 |
| 20 |
Overall length |
mm |
1707 |
| 21 |
Overall width |
mm |
697 |
| 22 |
Overall height(With handle) |
mm |
1181 |
| 23 |
Overall height(Without handle) |
mm |
714 |
| 24 |
Min.Turning radius |
mm |
1547 |
| 25 |
Min.Aisle width for pallets 800×1200 |
mm |
1920 |
| 26 |
Min.Aisle width for pallets 1000×1200 |
mm |
1953 |
| |
Performance |
|
|
| 27 |
Travel speed,laden/unladen |
km/h |
3/3.5 |
| 28 |
Lift speed,laden/unladen |
mm/s |
56/60 |
| 29 |
Lowering speed,laden/unladen |
mm/s |
57/59 |
| 30 |
Gradeability,laden/unladen |
% |
5/7 |
| |
Electrical configuration |
|
|
| 31 |
Drive motor |
KW |
DC 0.63 |
| 32 |
Lift motor |
KW |
DC 0.8 |
| 33 |
Battery voltage / capacity |
V/Ah |
24/70 |
| 34 |
Brake |
|
Electromagnetic / Regenerative |
| 35 |
Controller |
|
HELI |
| |
Weight |
|
|
| 36 |
Battery weight |
kg |
48 |
| 37 |
Service weight with battery |
kg |
275 |
