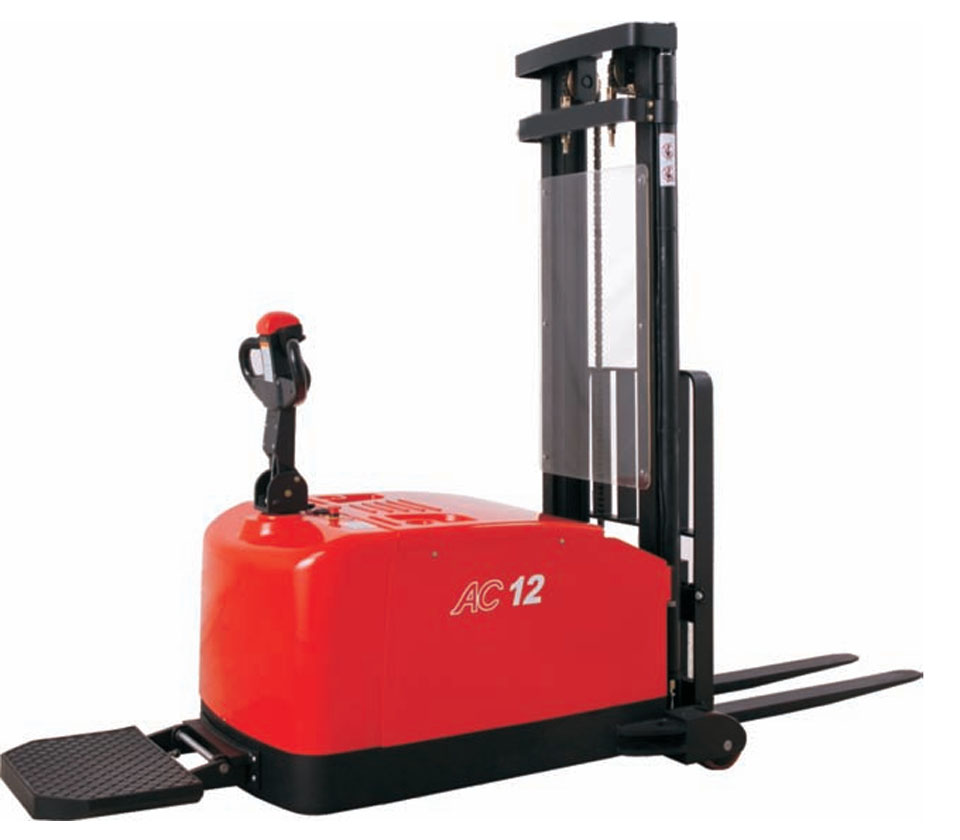

Name:CDD12-910 CDD12-970 Counterbalanced Stacker
Click to view larger
  Feature:
no
  Specifications:
  Feature
1 Model   CDD12 CDD12
2 Configuration No.   970 910
3 Type   平衡重式
Counterbalanced
平衡重式
Counterbalanced
4 Mast type   两级标准
2-Stage STD
两级全自由
Full free 2-Stage
5 Load capacity kg 1200 1200
6 Load center mm 500 500
7 Wheel base mm 1179 1179
8 Operating type   步行式 / 乘驾式 Walkie / Stand On 步行式 / 乘驾式 Walkie / Stand On
  Wheels
9 Wheels type   PU PU
10 Wheel quantity
Driving wheel/Balance wheel/Bearing wheel
  1/0/2 1/0/2
  Dimension
11 Standard lift height mm 3000 3000
12 Lowered fork height mm 55 55
13 Fork size(length/width/thickness) mm 1070/100/40 1070/100/40
14 Overall length mm 2502/3012 2502/3012
15 Overall width mm 1015 1015
16 Max extend height mm 4000 3600
17 Mast lowered height mm 2030 2080
18 Min.Turning radius mm 1352/1852 1352/1852
19 Min.Aisle width for pallets 800×1200 mm 2685/3175 2685/3175
20 Min.Aisle width for pallets 1000×1200 mm 2715/3195 2715/3195
21 Min.ground clearance mm 80 80
  Performance
22 Travel speed,laden/unladen km/h 5/5 5/5
23 Lift speed,laden/unladen mm/s 130/230 130/230
24 Lowering speed,laden/unladen mm/s 130/230 130/230
25 Gradeability,laden/unladen % 5/7 5/7
  Electrical configuration
26 Drive motor / Lift motor /Steering motor KW AC1.5/DC3/DC0.15 AC1.5/DC3/DC0.15
27 Battery voltage V 24 24
28 Battery capacity Ah 270 270
29 Brake   电磁 / 再生
Electromagnetic / Regenerative
电磁 / 再生
Electromagnetic / Regenerative
30 Controller   CURTIS 1230 CURTIS 1230
  Weight
31 Battery weight kg 245 245
32 Service weight with battery kg 1800 1930
