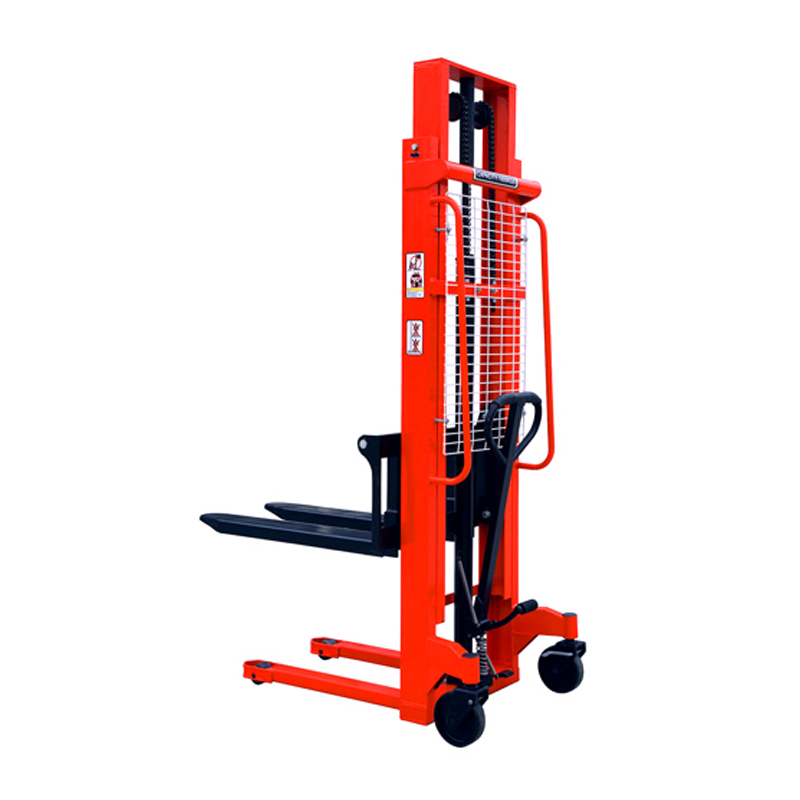

Name:CTY (Duplex Mast) Manual Stacker
Click to view larger
  Feature:
·  Robust Steel profile construction.
·  An economical lift to handle tasks from transporting dies and moulds skids and pallets.
·  Sturdy and compact enough to fit through standard doors and to operate in congested areas.
·  Precision engineered for smooth performance and exceptional durability.
·  Lifting function operated by foot and hand controls.
  Specifications:
Model    CTY1000-25 CTY1000-30
Rated Capacity kg 1000 1000
Load Center mm 400 400
Lifting Height mm 95-2500 95-3000
Fork Length mm 900 900
Fork Width mm 220-900 220-900
Min. Turning Radius mm 1250 1250
Overall Length  mm 1340 1340
Overall Width  mm 950 950
Overall Height  mm 1810 2060
Net Weight kg 355 370
