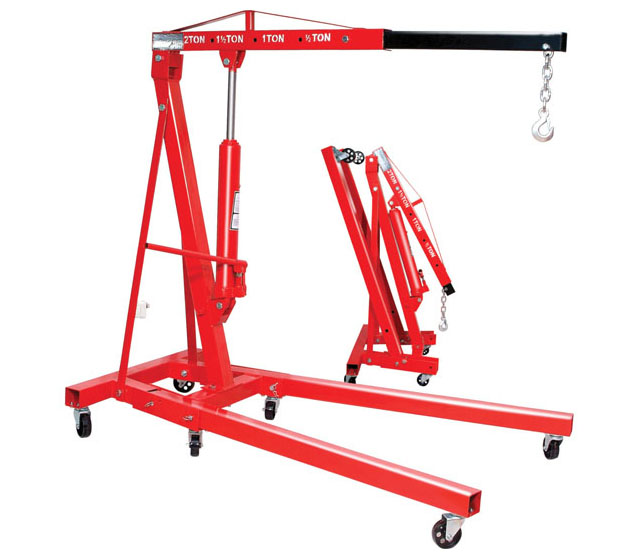

Name：SP Shop Crane
	Click to view larger

Feature：

MOBILE FLOOR CRANE

1. Designed for heavy-duty lifting, loading and positioning.
2. Ruggedly-constructed; will give dependable, long-lasting use Standard handpump hydraulic lift cylinder.
3. Lifts load from 0 mm to 2000 mm.
4. Available capacity: From 500 Kgs to 2000 Kgs.
5. Available Options: Electric operated & Battery operated.

Specifications：

Model		SP500F	SP1000F	SP2000F	SP2000
Foldable		Yes			No
Capacity	kg	500	1000	2000	2000
Capacity at position	P1	500	1000	2000	2000
	P2	400	750	1500	1500
	P3	250	500	1000	1000
	P4	150	250	500	500
A	mm	1403	1650	1403	1350
B	mm	200	170	200	185
C	mm	1710	1680	1710	1620-2320
D	mm	900	1160	900	1270
E	mm	180	95	180	225
W1	mm	810	500	810	945-1340
W2	mm	1015	1070	1015	800-960
H1	mm	345	550	345	185
H2	mm	1820	1785	1820	1945
H3	mm	//	180	//	485
H4	mm	2240	1845	2240	2410
Net Weight	kg	75	96	95	113
