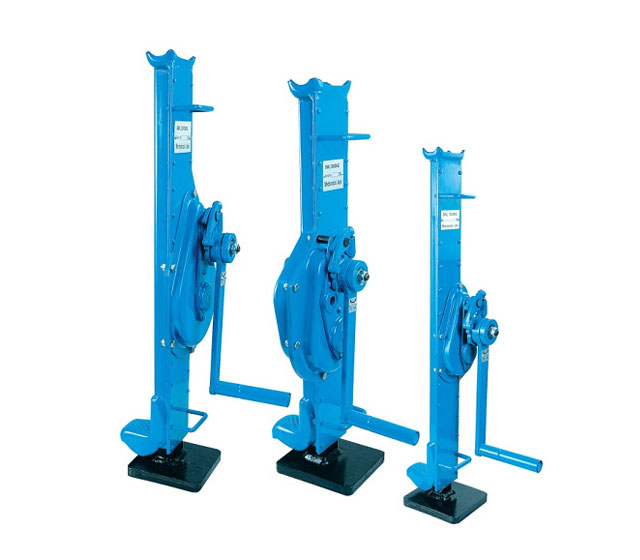

Name:ST Steel Jack
Click to view larger
  Feature:
1. OKUTSU steel jacks are developed in accordance with the latest safety regulations. With milled rack, geared wheels and tempered parts of driving gear.
2. In accordance with DIN 7355 (type HVS).
3. Suitable for lifting loads of any type.
4. With lifting body.
5. Safety crank with folding handle.
6. Type HKB comes with low body height.
7. Lifting either with fixed toe or on clawed head.
8. All construction components standardized.
9. Low expenditure of force through optimal ratio.
  Specifications:
Model ST-l.5 ST-3 ST-5 ST-10
Capacity kg 1500 3000 5000 10000
Jack Height mm 600 735 735 800
Claw Lowest mm 70 70 80 100
Lifting Height mm 300 355 355 380
Weight kg 16 21 28 46
