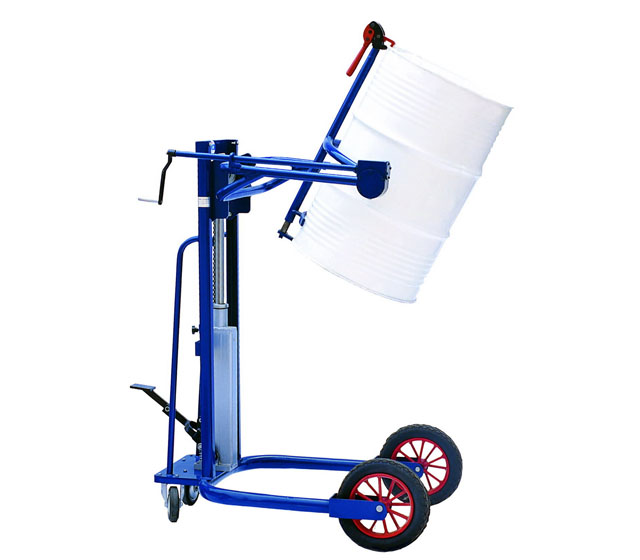

Name:COT0.25 Drum Tilter
Click to view larger
  Feature:
COT Drum Handler

1. Special design for lifting, rotating or stacking drum.
2. No need for the operator to touch the drum to raise, transport and rotate.
3. Could be operated with hand pump and electric power for lifting.
4. Could be designed with all electric operation including lifting, rotating and driving.
5. Swivel casters for easy movement and steering.
6. All models have all welded steel construction for durability.
  Specifications:
Model COT0.25 (single Mast) COT0.25 (duplex mast)
Rated lifting capacity(㎏) 250 250
Lifting height(mm) 1460 1600
Overall dimension L×W×H(mm) 1100×860×1540 1150 × 925×1410
Self Weight(㎏) 150 175
