Name：

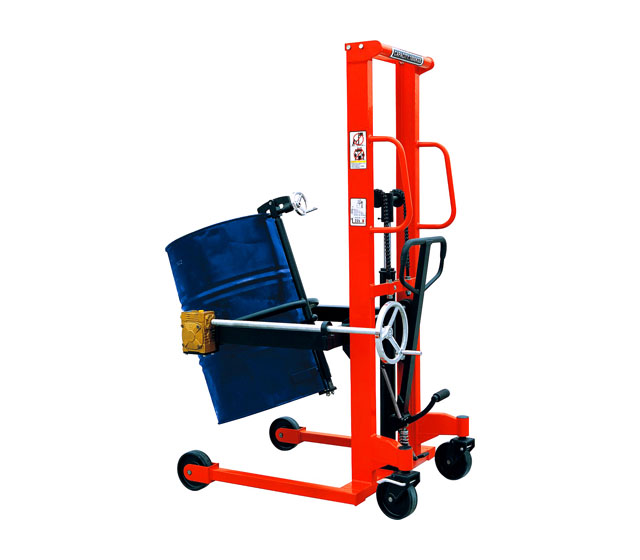

COT0.35B Drum Tilter
Click to view larger
Feature：
Ideal for applications where barrels are stacked, transported or being poured of stacking, transporting and poring oil aslant.
The slope of the barrel is controlled by turning the control handle.
Conforms to EN1757
Specifications：
Model
COT0.35B
Rated Capacity
kg
350
Lifting Height
mm
1500
Overall Length
mm
1190
Overall Width
mm
890
Overall Height
mm
2020
Net Weight
kg
155
