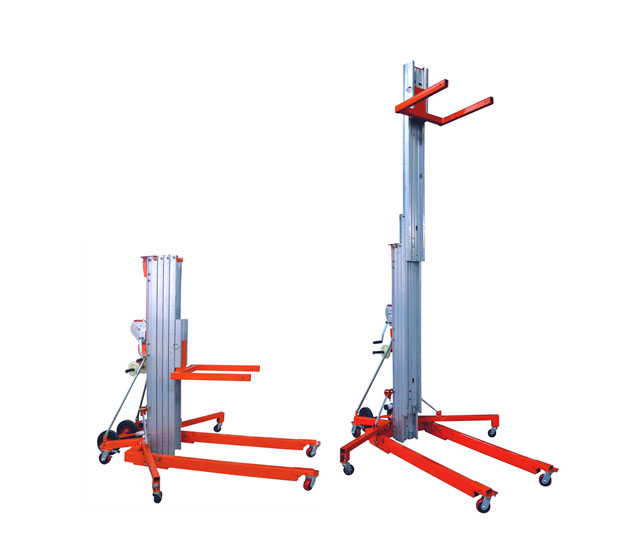

Name:LGA Aerial Material lifts
Click to view larger
  Feature:
1. LGA Series product is a manual operating lift platform.
2. There are multiple base, winch and load accessories to choose from.
3. The Max. rated load is 454 kg ,It can raise up to 7.4 meters.
4. It can be fully used in the construction, industrial, storage, exhibition, stage construction, the advertising industry, central air-conditioning ducts and other pipes, etc. use.
  Specifications:
Model LGA-10 LGA-15 LGA-20 LGA-25
Lifting height mm 3000 4500 6000 7400
Working length mm 1460 1840 2040 2040
Rated load kg 454 363 363 295
Overall length mm 740 740 740 790
Overall width mm 800 800 800 800
Overall height mm 1990 1990 1990 1990
Weight kg 117.9 143.8 183.7 204.1
