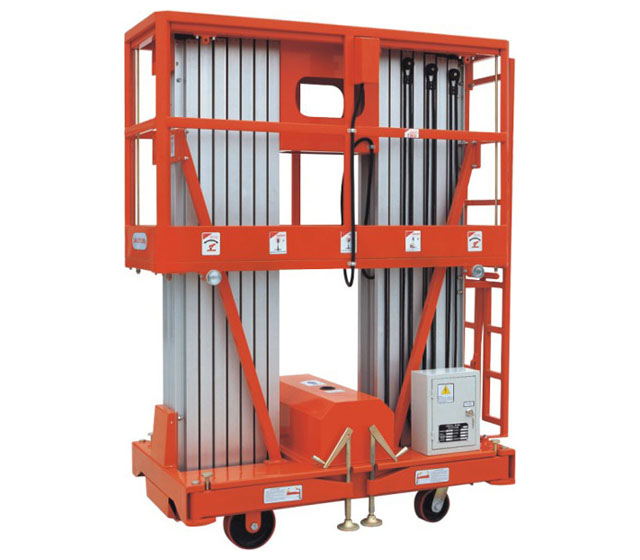

Name:GTWY Mast aerial workplatform (double mast)
Click to view larger
  Feature:
1. Suitable for 1-2 person to work upraised with better loading capacity;
2. Two masts are descended or ascended synchronously;
3. Entire lifting unit with guardrail offers such high intensity and convenient installation and disassembling that it could complete assembling or disassembling through lifting only once;
4. Easy maneuvering and with straddle legs similar to that of single mast aerial work platform;
5. Conforms to CE;
6. Available accessories: mast stand, auxiliary for step use, side-sheer unit;
7. Power Supply: Single phase AC as standard;DC or both AC as option.
  Specifications:
Model No. GTWY6-2000 GTWY8-2000 GTWY10-2000 GTWY12-2000
Mast Dual Mast
Max. Platform Height mm 6000 8000 10000 12000
Max. Machine Height mm 7050 9050 11050 13050
Min. Platform Height mm 1800 1800 1800 2020
Ground Clearance mm 80 80 80 80
Lift Rated Capacity kg 300 300 250 200
Platform Size mm 1210×600 1210×601 1450×600 1450×601
Outspread Size mm 1880×1760 1880×1761 2220×1960 2250×2570
Electrical Source AC v 220-240 220-241 220-242 220-243
DC v 12 12 12 12
Aneroid Battery V/Ah 2×12/75 2×12/76 2×12/77 2×12/78
Charger V/A 12/15 12/16 12/17 12/18
Lifting Motor AC V/kw 220/0.75-1.5 220/0.75-1.6 220/0.75-1.7 220/0.75-1.8
DC V/kw 12/2.5 12/2.6 12/2.7 12/2.8
Overall Length mm 1560 1560 1790 1790
Overall Width mm 840 840 840 890
Overall Height mm 1810 1810 1810 2030
Overall AC Kg 570 630 730 825
Net Weight DC kg 610 670 770 865
