Products
Current position:Home >> Products

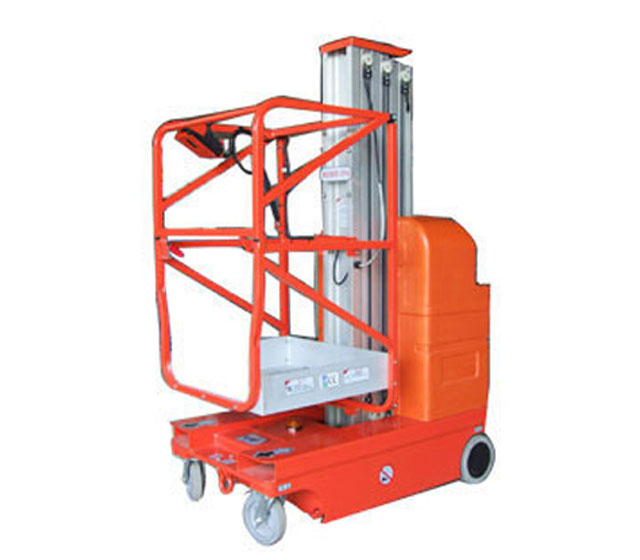

Name:AMWP1000  Self-propelled mast Aerial Work Platform
Click to view larger
  Feature:
The product has passed the CE certification and is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is only for one persons working .

1. It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled manually and requires no manual push.
2. The driving motor has the automatic braking function.
3. It can climb to a certain gradient.
4. It has special design for moving on unleveled floor and tilt alarm.
5. The malfunction can be diagnosed and displayed in codes. The emergent drop will be locked.
6. The electricity recharge is protected. In recharging condition, the operation is stopped.
  Specifications:
Model No. AMWP6-1000 AMWP7.5-1000
Max. Platform Height mm 6000 7500
Max. Machine Height 7600 9000
Min. Platform Height 510
Ground Clearance 50
Lift Rated Capacity kg 150 125
Platform Extend Capacity Free Set
Platform Size mm 780×700×1150
Platform Extend Length Free Set
Max. Drive Speed (Platform Stowed) km/h 3~4
Max. Drive Speed (Platform Elevated) 0.6-1
Min. Turning Radius mm 1350
Max. Travel Grade % 15-20
Caster Size in 8
Driving Wheel Size mm ф230-250×80
Driving Motor v/kw 2×24/0.4-0.5
Lifting Motor 24/ 2
Aneroid Battery v/Ah 2×12/100
Charger v/A 24/ 12
Pothole Protection System Automechanism
Overall Length mm 1360
Overall Width 790
Overall Height 1980
Overall Net Weight kg 850 880
