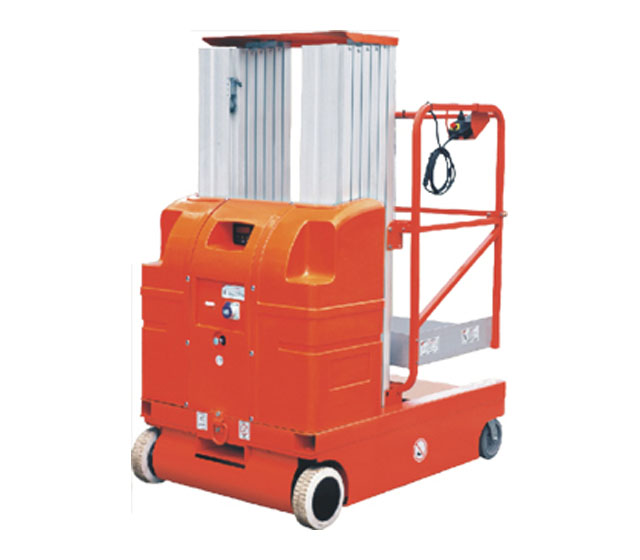

Name:AMWP2000 Self-propelled Work platform
Click to view larger
  Feature:
The product is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is for two persons working toge ther.

1. It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled maunally and requires no manual push.
2. The driving motor has the automatic braking function.
3. It can climb to a certain gradient.
4. It has the function of protection of floor pit and tilt alarm.
5. The malfunction can be diagnosed and displayed in codes. The emergent drop will be locked.
6. The electricity recharge is protected. In recharging condition, the operation is stopped.
  Specifications:
Model No. AMWP7.5-2000 AMWP9-2000
Max. Platform Height mm 7500 9000
Max. Machine Height mm 9000 10500
Min. Platform Height mm 530
Ground Clearance mm 50
Lift Rated Capacity kg 200 150
Platform Extend Capacity kg Free Set
Platform Size mm 1000×700×1150
Platform Extend Length mm Free Set
Max. Drive Speed(Platform Stowed) km/h 3/4
Max. Drive Speed(Platform Elevated) km/h 0.6-1
Min. Turning Radius mm 1500
Max. Travel Grade % 15-20
Caster Size in 8
Driving Wheel Size mm ?230-250×80
Driving Motor v/kw 2×24/0.4-0.5
Lifting Motor v/kw 24/ 2
Aneroid Battery v/Ah 2×12/120
Charger v/A 24/ 12
Pothole Protection System v/A Automechanism
Overall Length mm 1500
Overall Width mm 1000
Overall Height mm 1980
Overall Net Weight kg 1100 1250
