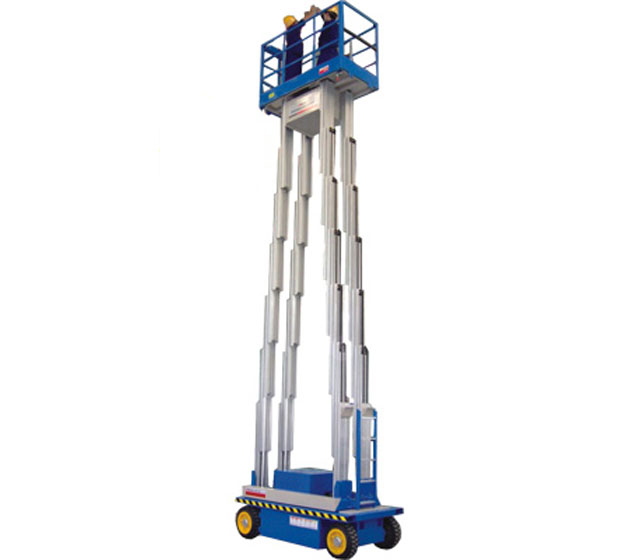

Name：AMWP4000 Self-propelled mast working platform
	Click to view larger

Feature：

1. Suitable for 1-3 person to work upraised.
2. Maximum Platform height available: 6m;8m.
3. Power Supply: DC 24V.
4. Platform roll out horizontally (optional).
5. Roll out length: 0.9M.
6. Traveling method: hydraulic powered self-propeller.

Specifications：

Model No.		AMWP6-4000	AMWP8-4000
Max. Platform Height	mm	6000	8000
Max. Machine Height	mm	7700	9700
Min. Platform Height	mm
Ground Clearance	mm	50
Lift Rated Capacity	kg	400	300
Platform Extend Capacity	kg	Free Set
Platform Size	mm	1720×1040×1150
Platform Extend Length	mm	Free Set
Max. Drive Speed (Platform Stowed)	km/h	3~4
Max. Drive Speed (Platform Elevated)	km/h	0.6-1
Max. Travel Grade	%	15-20
Roller Out Length	mm	900
Driving Motor	v/kw	24/ 3
Lifting Motor	v/kw	24/ 3
Aneroid Battery	v/Ah	2×12/100
Charger	v/A	24/ 12
Pothole Protection System	v/A	Automechanism
Overall Length	mm	2230
Overall Width	mm	1100
Overall Height	mm	1960
Overall Net Weight	kg	2050	2200
