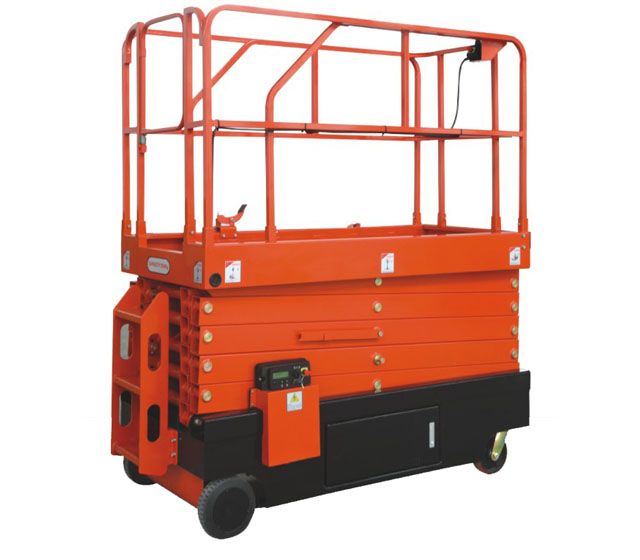

Name:FSJY normal Self-propelled scissors lift
Click to view larger
  Feature:
FSJY Full electric work platform, both driving and lifting are powered by electricity, easy-operation design to assure all operation could be made by only one person. This model sells very well and wins a high reputation all over the world. High quality imported components to keep its very perfect performance.

1. Electronic system imported directly from PG United Kingdom.
2. Battery imported from USA.
3. Driving wheels and balance wheels assembly to keep the safety.
4. Spraying plastics appearance.
5. 2-3 days working time of one time charging.
6. With safety-falling equipment.
  Specifications:
MODEL FSJY0.24-3 FSJY0.3-6 FSJY0.25-7.4
Max. Platform Height (H) mm 3000 6000 7400
Max. Machine Height (H1) mm 5000 7100 8500
Min. Platform Height (D) mm 720 1010 1130
Ground Clearance mm 60 90
Lift Rated Capacity kg 240 300 250
Platform Extend Capacity kg / 100 80
Platform Size mm 1170x600 1870×730
Platform Extend Length (F) mm / 900
Max Drive Speed (platform Stowed) km/h 4 3 ~ 4
Max.Drive Sp)eed (platform Elevated km/h 0.8 0.6 ~ 1
Min. Turing Radius mm 1200 1900
Max. Gradbility % 10~15 10 ~ 15
Driving Wheel Size mm Ф230×80 Ф250×80
Caster Size in 6 8
Driving Motor v/kw 2x24/0.4 2×24/0.5
Lifting Motor v/kw 24/0.8 24/2.2
Aneroid Battery v/Ah 2x12/80 2×12/150
Charger v/A 24/12 24/15
Pothole Protection System Automechanism
Overall Length mm 1180 2030
Overall Width mm 760 900
Overall Height mm 1830 2120 2240
Net Weight kg 490 1300 1400
