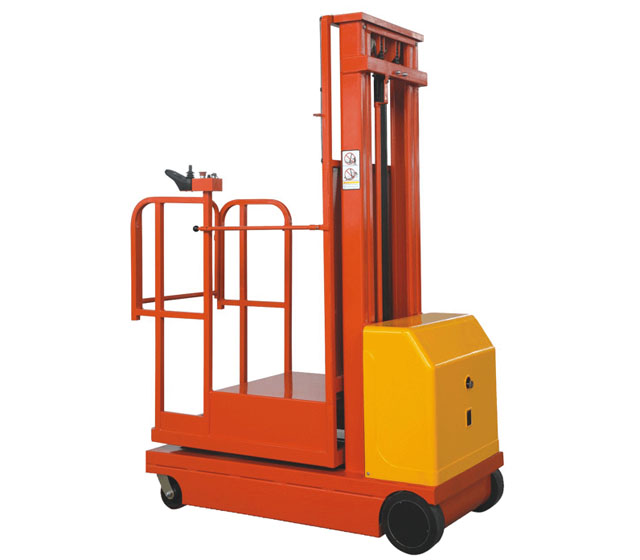

Name：ZCBG (new) Electric Order Picker
	Click to view larger

Feature：

ZCBG Order Picker are mainly used for goods transportation in super-market and warehouse.

1. Electronic system imported directly from PG United Kingdom.
2. Battery imported from USA.
3. Driving wheels and balance wheels assembly to keep the safety.
4. Spraying plastics appearance.
5. 2-3 days working time of one time charging.
6. With safety-falling equipment.

Specifications：

Model		ZCBG300-3	ZCBG300-3.5
Max. platform height	H (mm)	3000	3500
Max. overall height	H1 (mm)	4450	5200
Distance between pedestal and ground	H2 (mm)	42	42
Platform loading capacity	(kg)	300	300
Working platform size	L×N (mm)	600×640	600×640
Max. traveling speed (platform lowered)	Km/h)	4	4
Max. traveling speed(platform lifted)	(km/h)	1.6	1.6
Min. Tuming radius	(mm)	1500	1500
Max. climbing ability	(%)	15-20	15-20
Drive wheel size	(mm)	230-250×80	230-250×80
Castor size	(in)	6	6
Traveling motor	(v/kw)	2×24/0.4-0.5	2×24/0.4-0.5
Lifting motor	(v/kw)	2/24	2/24
Battery (service free)	(v/kw)	2×12/100	2×12/100
Battery charger	(v/A)	24/20	24/20
Overall length A	(mm)	1550	1550
Overall width B	(mm)	700	700
Overall height C	(mm)	1950	2200
Overall number	(kg)	574	588
