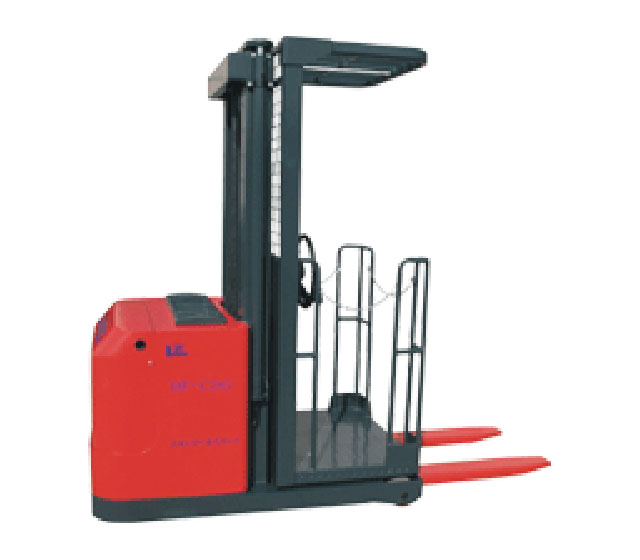

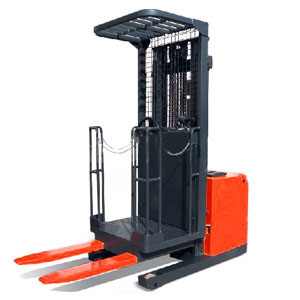

Name:CDG500 Electric Order picker
Click to view larger
  Feature:

A wide selection of lift heights and performance package fill all types of warehouse needs- from high level order picking to expansion of low-level pick locations with the economical order picker.

Operators rise with the load to pick directly from racks. Superior visibility and precise, responsive controls create a comfortable, highly efficient work platform.

1. Use of high-quality drive systems and pumping stations,lifting and running is smooth and powerful.
2. Configure large-capacity traction batteries, power lasting long, durable and reliable.
3. With a seat belt, seat belt firmly connected with the roof, to ensure operator safety.
4. Apply to the Treasury, workshops, supermarkets, stadiums and other high-altitude operation or maintenance operation selected.


  Specifications:
Model Unit CDG500
Load capacity Kg 500
Wheels size mm F140*80
Wheels material PU
Min. turning radius mm 1920
Max. lifting height mm 2700
Loading platform(forks)size mm 800*620
Manned platform size(L*W) mm 840*600
width of Single fork mm 150
Lifting speed m/min 5
Lowering speed m/min 4
Pumping power KW/V 2.2/24
Batteries (traction battery) Ah/V 210/24
Driving wheel KW/V 1.2/24
Walking speed Km/h 6
Dimensions mm 1350*800*1800
Net weight Kg 1230
