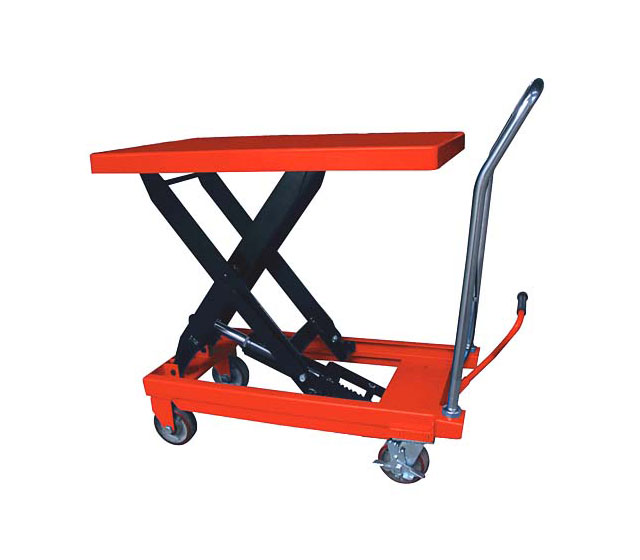

Name：CYT Manual Table Lift
Click to view larger
  Feature：
1. Simple,compact desing.
2. Fully complying product.
3. Manual operation.
4. All tables fitted with service props.
5. Simple to add rollers etc.
6. Fully serviceable components.
7. Fast moving product line.
  Specifications：
MODEL CYT150 CYT150A CYT150D CYT300 CYT300A CYT300D CYT500 CYT500D CYT500A CYT500B CYT750 CYT800 CYT1000 CYT1000D CYT1500D CYT2000D
Capacity (kg) 150 300 500 500 500 750/800 1000 1000 1500 2000
Lifting height (mm) 730 900 900 900 900 900 1000 1000 1000 1000
Lowered height (mm) 210 270 280 380 295 410 410 380 380 380
Table size (mm) 700X450X35 815X500X50 815X500X50 1200X610X50 1600X800X50 1000X512X55 1200X512X55 1200X610X55 1200X610X55 1200X610X55
Weight (kg) 37 74 81 84 137 117 119 165 180 196
Remark *A=with fold handle *B= with super large table *D= with fission Cylinder
