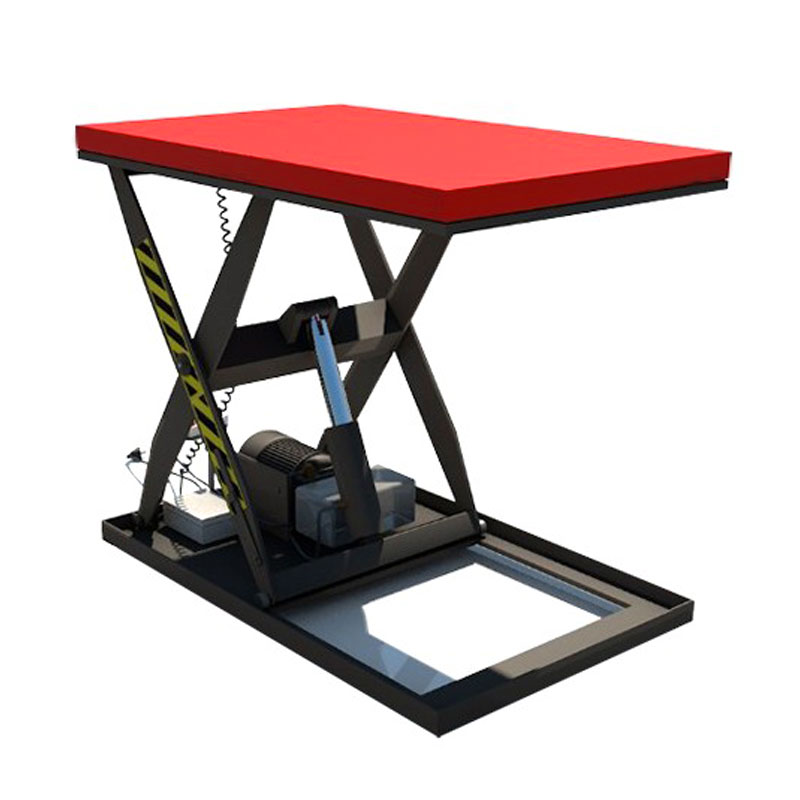

Name:HIW Electric static table lift
Click to view larger
  Feature:
1. Made of high quality steel and is designed to be durable, reliable and easy-to-use.
2. Electric controlling system is imported from Europe.
3. with compact structure and gives a balanced lifting and lowering.
4. with a big capacity.
5. Conforms to EN1570 and BSEN60204-1.
  Specifications:
Model HIW1.0EU HIW2.0EU HIW4.0EU HIW3.0EU
Capacity Kg 500 1000 2000 3000
Lowered Height c mm 190 190 190 220
Raised Height h mm 1010 1010 1010 1020
Platform Size(L*B) mm 1300x800 1300x800 1300x800 1300x800
Lifting Time s 15 25 40 26
Lifting speed with load mm/s 55 40 22 30
lowering speed with load mm/s 40 35 33 40
Motor KW 0.75 0.75 0.75 1.5
Net Weight Kg 160 220 280 320
