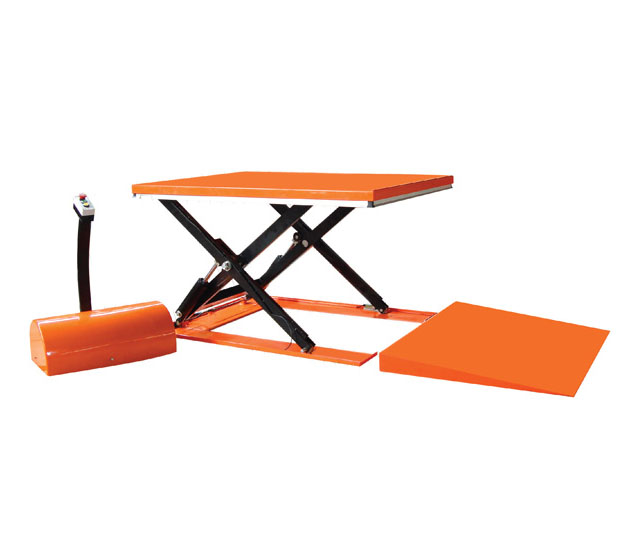

Name:ETY Electric static Table lift
Click to view larger
1. Heavy duty design with larger platform.
2. These tables achieve a low closed height, eliminating the need for a pit installation.
3. They are manufactured to all European safety standards including EN1570:1999.
4. Remote power pack with pedestal and controls, protected to IP54.
5. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
6. 24V control box with UP and DOWN buttons and emergency stop.
7. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply is AC 380V/50HZ/3phase.
8. Hose burst safety valve to stop the lift table lowering in case of hose breakage.
9. Removable lifting eyes to facilitate handling and installation of the lift table.
10. Oils bushings on pivot points.
11. Loading ramp is standard equipment.
Model ETY1001 ETY1002 ETY1501 ETY1502 ETY2001 ETY2002
Rated Capacity kg 1000 1000 1500 1500 2000 2000
Min. Height of Table mm 85 85 105 105 105 105
Max. Height of Table mm 860 860 870 870 870 870
Table Dimension mm 1450x1140 1600x1140 1600x800 1600x1000 1600x1000 1600x1200
Weight kg 357 364 362 401 405 419
