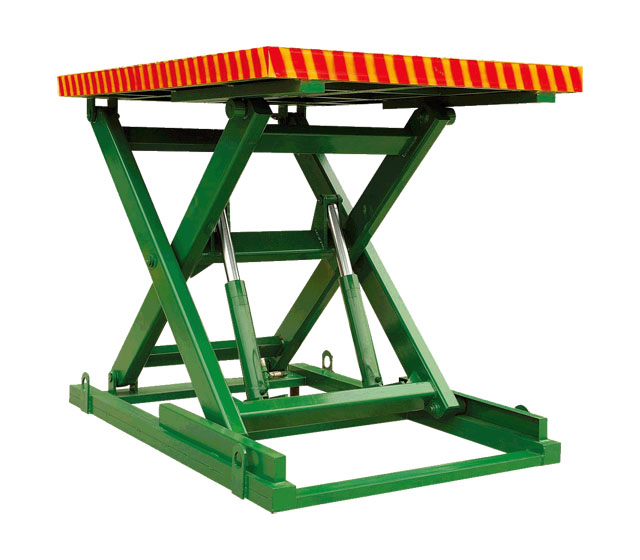

Name:SJG Electric cargo lift
Click to view larger
  Feature:
1. The mechanistic form of optimized design effectively lowers the initial height of the lift table, and increases the lifting stroke to the maximum range.
2. The fairly strong rigidity of the lifting mechanism enables the lift table to have every high rise and fall steadiness.
3. The reliability of the lifting mechanism, and the stability of the hydraulic system make the lift table suitable for frequent operation.
4. The steel have undergone shot blast treatment, effectively improving the welding quality and paint adhesive force.
5. The precision ground hydraulic cylinder inner wall fitted with imported sealing elements ensure the hydraulic cylinder has very good sealing performance.
6. The compact type hydraulic station design can be integrated inside of most lift tables.
  Specifications:
Model Capacity (kg) Lifting height H2(mm) Rated height(mm) Lift Height(mm) Platform size(mm) Elevating time(s) Motor power(kw) Self weight (kg)
Stationary Hydraulic Lift Table with Single forks
SJG1-1.7 1000 1700 2160 460 2500x2000 30 2.2 1200
SJG2-1.7 2000 1700 2180 480 2500x2000 30 3.7 1400
SJG3-1.7 3000 1700 2180 480 2500x2000 30 3.7 1600
SJG5-1.7 5000 1700 2280 580 2800x2000 30 7.5 2000
SJG10-1.7 10000 1700 2500 800 4000x2000 30 7.5 3000
Stationary Hydraulic Lift Table Double scissors
SJG1-3 1000 3000 3540 540 2000x2000 30 2.2 1300
SJG2-3 2000 3000 3600 600 2000x2000 30 3.7 1600
SJG3-3 3000 3000 3600 680 2000x2000 30 3.7 1800
Stationary Hydraulic Lift Table with Multi Scissors
SJG1-4 1000 4000 4680 740 2000x2000 40 2.2 1500
SJG2-4 2000 4000 4740 800 2000x2000 40 3.7 1800
SJG3-4 3000 4000 4800 800 2000x2000 40 5.5 2000
SJG1-5 1000 5000 5800 880 2000x2000 60 2.2 1700
SJG2-5 2000 5000 5880 960 2000x2000 60 3.7 2100
SJG3-5 3000 5000 5960 1020 2000x2000 70 5.5 2500
SJG1-6 1000 6000 7020 1120 2000x2000 70 3.7 2000
SJG2-6 2000 6000 7120 1280 2000x2000 70 5.5 2500
SJG3-6 3000 6000 7120 1520 2000x2000 100 5.5 3000
SJG1-9 1000 9000 10280 740 2500x2000 120 5.5 3500
SJG2-9 2000 9000 10520 800 2500x2000 50 7.5 4800
Stationary Hydraulic Lift Table with Multi Scissors / double line
SJG4-4 4000 4000 4740 880 4500x2000 60 5.5 3500
SJG4-5 4000 5000 5880 1120 6000x2200 60 5.5 4000
SJG5-5.5 5000 5500 6380 600 6000x2200 60 7.5 5000
