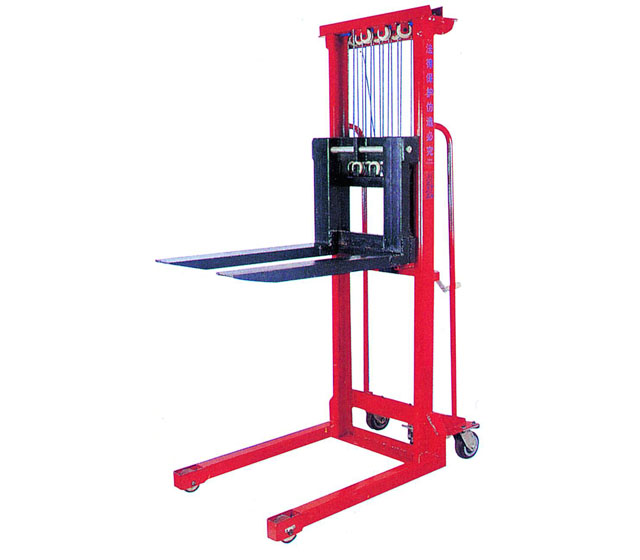

Name：CTJ Hand Winch Stacker
	Click to view larger

Feature：

1. Simple, easy way to lift, lower and transport heavy loads with minimum effort.
2. Features adjustable width forks and outrigger legs.
3. Low effort hand winch equipped with automatic brake systems and adjustable length handle.
4. Swivel casters feature foot brake to prevent movement.
5. Optional Steel Platform - Fits H140501. Solid steel construction, Fits over forks. Easily removed.

Specifications：

Model	CTJ500	CTJ1000	CTJ1500	CTJ1000A
Loading capacity(kg)	500	1000	1500	1000
Lifting speed (mm/sec)	0 ～ 140	0 ～ 60	0 ～ 40	0 ～ 60
Lifting height (mm)	1500	1500	1500	1400
Outline dimension (mm)	1200×620×1990	1260×680×2020	1480×800×2035	1220×680×1890
Fork length (mm)	800	800	900	800
Front wheel (mm)	Φ90	Φ90	Φ90	Φ90
Rear wheel (mm)	Φ180	Φ180	Φ180	Φ180
Mesh line (mm)	Φ 2.8 ～ 3.5	Φ 2.8 ～ 3.5	Φ 2.8 ～ 3.5	Φ 2.8 ～ 3.5
Goods outside width (mm)	190 ～ 420	230 ～ 530	260 ～ 640	230 ～ 530
Brake	No	No	No	Yes
Outside width of Straddle (mm)	620	680	800	680
Loading center (mm)	400	400	450	400
