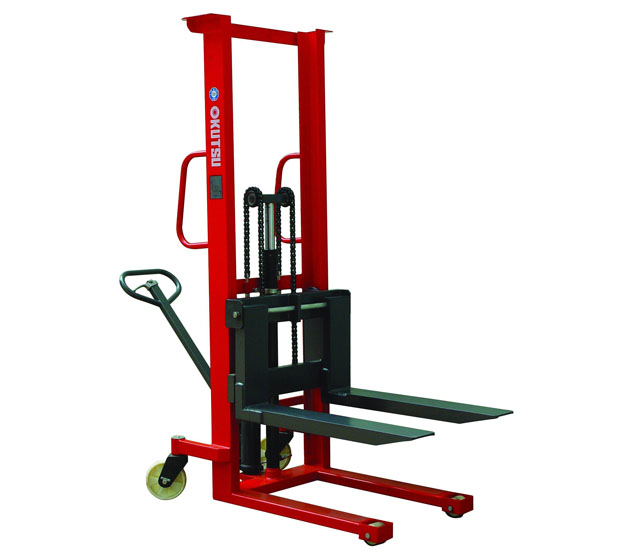

Name:CTY Manual Hydraulic Stacker
Click to view larger
  Feature:
1. ideal for unloading & loading trucks where docks do not exits.
2. to handle tasks from transporting dies & molds, rolls, pallets, bins,boxes, and more and more.
3. ruggedly engineered and built to easily handle.
4. hydraulic system: double acting hand pump with precise honed cylinder for long and trouble free service.
5. available in fixed fork, adjustable fork, fixed platform, roller platform, pipe fork, etc..etc.
6. dully powder coated with anticorrosive treatments.
7. available in straddle base and wrap over base, single mast and telescopic mast or double mast.
8. sales price: usd350 ~ usd600.
  Specifications:
Model CTY1000 CTY1500
Loading capacitykg 1000 1500
Lifting heightmm 1600
Loading centermm 450 500
Front wheels (mm)    φ78×70 polyurethane wheel
Rear wheels (mm)    φ180×50   rubber wheel
Width of forks (mm) 680
Width of single fork(mm) 140
Lowest height (mm) 85
Length of forks(mm) 1150
Outline dimension (mm) 760×1709×2077
Weight (kg) 236
