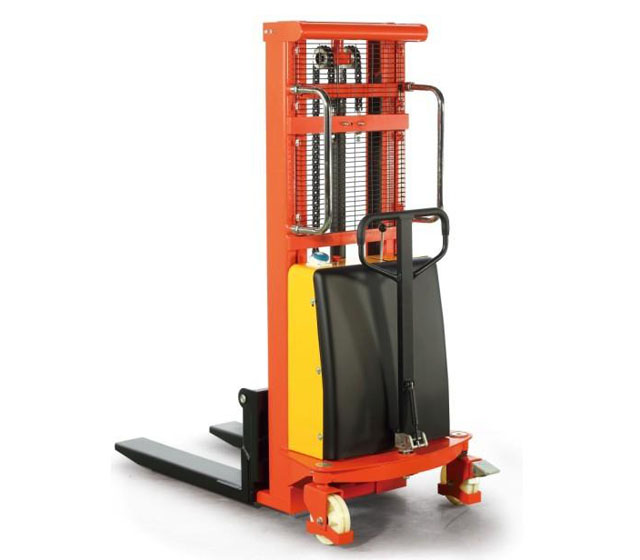

Name:SPN semi-electric stacker
Click to view larger
1. The product has passed the CE certification.
2. It is a half electric forklift for load and unload and short-distance transportation.
3. The operation is very easy.
4. It is reliable. There is no noise and pollution.
5. The malfunction rate is low.
6. There are complete specifications for forks to meet the different demands of the customers.
Model SPN10 SPN20
Capacity Q Kg 1000 2000
Min.fork height h2 mm 85 85
Max.fork height h3 mm 1600/2500/3000 1600
Min.mast height h1 mm 1980/1830/2080 1980
Size of fork e*s mm 150/160x60 150/160x60
Length of fork l mm 900/1100 900/1100
Width overall forks(Adjust/fixed)b5 mm 330~640/550 330~640/550
Radius of gyration Wa mm 1240 1360
N.W. kg 396/443/466 500
Fork rollers l mm Φ74x70 Φ74x70
Big wheel mm Φ180x50 Φ180x50
Battery V/Ah(5 h autonomy) 12/150 12/150
Lifting motor power(kw) 1.5 1.5

Conforms to EN1757-1
Much lighter and easier to handle and is made of high quality German steel to ensure stability and strength.
