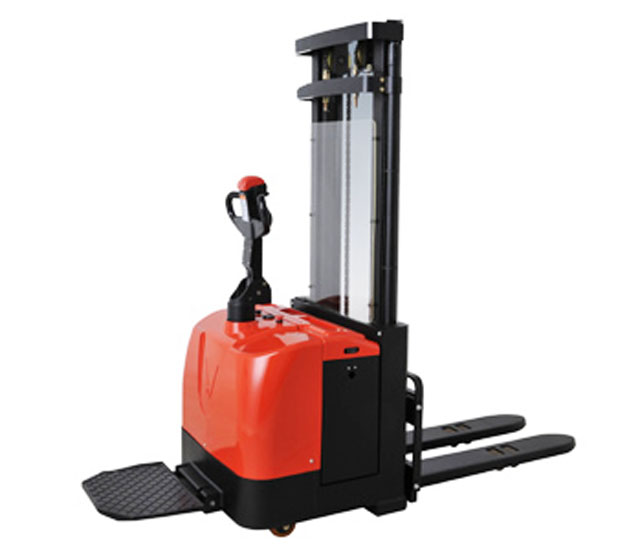

Name：CDD14-980 CDD14-930 (AC) Forkover power stacker
	Click to view larger

Feature：

1. Durable and rigid frame construction ensure the stackers to handle heavy loads.
2. Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3. Sideway battery exchange to reduce intervals,ensure working efficiency and productivity.
4. A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
5. Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.
6. limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.
7. Robust and rigid mast configuration optimize stackers lifting stability and safety.
8. Safe Grid covered on the mast to protect operator from any injured risk.

Specifications：

Feature	Unit
Model		CDD14	CDD14
Configuration No.		980	930
Type		Narrow legs	Narrow legs
Mast type		Full free 2-Stage	2-Stage STD
Load capacity	kg	1400	1400
Load center	mm	600	600
Wheel base	mm	1325	1325
Operating type		Walkie / Stand On	Walkie / Stand On
Wheels
Wheels type		PU	PU
Wheel quantity Driving wheel /Balance wheel /Loading wheel		1/2/4	1/2/4
Dimension
Standard lift height	mm	2500/3000/3300	1400/2000/2500/3000/3300/3600/4000
Lowered fork height	mm	90	90
Fork size (length/width/thickness)	mm	1150(1220)/185/55	1150(1220)/185/55
Overall length	mm	2050/2470	2050/2470
Overall width	mm	856	856
Max. extend height	mm	3000/3500/3800	1900/2500/3000/3500/3800/4100/4500
Mast lowered height	mm	1830/2080/2180	1185/1535/1765/1980/2135/2335/2500
Min. Turning radius	mm	1580/1990	1580/1990
Min.Aisle width for pallets 800×1200	mm	2180/2580	2180/2580
Min. Aisle width for pallets 1000×1200	mm	2210/2600	2210/2600
Min. ground clearance	mm	30	30
Performance
Travel speed,laden/unladen	km/h	5/5	5/5
Lift speed,laden/unladen	mm/s	130/230	130/230
Lowering speed,laden/unladen	mm/s	130/230	130/230
Gradeability,laden/unladen	%	5/7	5/7
Electrical configuration
Drive motor /Lift motor /Steering motor	KW	AC1.5/DC3/DC0.15	AC1.5/DC3/DC0.15
Battery voltage	V	24	24
Battery capacity	Ah	280	280
Brake		Electromagnetic / Regenerative	Electromagnetic / Regenerative
Controller		CURTIS 1230	CURTIS 1230
Weight
Battery weight	kg	235	235
Service weight with battery	kg	1330	1204
