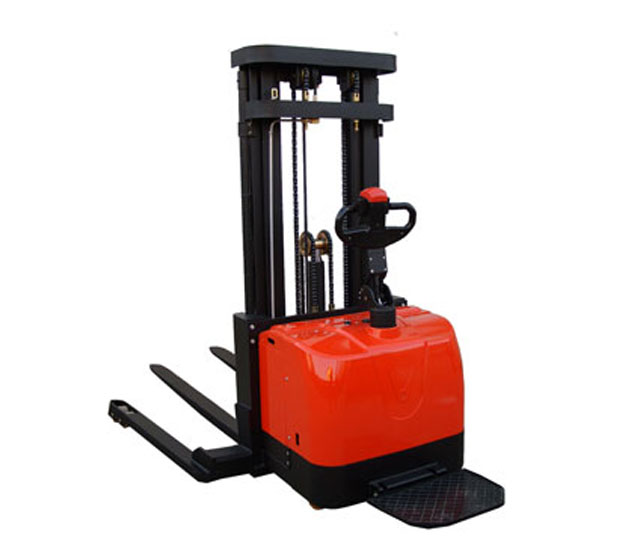

Name:CDD16-960 CDD16-360 (AC) High lift power stacker
Click to view larger

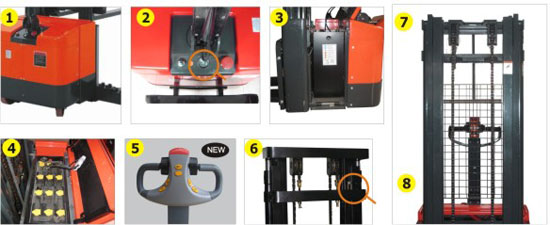

  Feature:

1. Connected loading wheel. Optional for all stackers.
2. Wide view and triplex mast.
3. Foldable protecting arms. Optional for all stackers.
4. Motor and all wires are fixed when handle move.
1. Easy operation handle: 3-speed lowering control, make lowering more safe, also more efficient.
2. EPS & AC Motor: EPS(Electric Power Steering) make driving much more comfortable and easy, AC motor standard equipped.
3. Safe design of lifting: Speed is reduced to 2km/h when lifting height is more than 1.5m, for all stackers.
4. Optional Protecting Arm: Max. speed is 3km/h in normal condition, it can reach to 6km/h when protecting arm is opened, for all stackers.
5. 5-points supporting: The truck have 5 supporting points, its floating is the middle and 2 balance wheels are fixed, much more stable, also cylinder is used to strengthen pressure on driving wheel to prevent skidding.
6. Fixed motor & wires: Motor and all wires are fixed when handle move, reducing most possibility of wire abrasion.


  Specifications:
  Feature Unit
1 Model   CDD16 CDD16
2 Configuration No.   960 360
3 Type    Wide legs Wide legs
4 Mast type    Full free 3-Stage Full free 3-Stage
5 Load capacity kg 1600 1600
6 Load center mm 600 600
7 Wheel base mm 1375 1375
8 Operating type   Walkie/Stand On  Walkie/Stand On
  Wheels
9 Wheels type   PU PU
10 Wheel quantity
Driving wheel /Balance wheel /Loading wheel
  1/2/4 1/2/4
  Dimension
11 Standard lift height mm 3700/3900/4200/4500/4700/5000 5300/5500/5800
12 Lowered fork height mm 55 85
13 Fork size(length/width/thickness) mm 1070/100/40 1070/100/40
14 Overall length mm 2073/2493 2073/2493
15 Overall width mm 1470 1470
16 Max. extend height mm 4200/4400/4700/5000/5200/5500 5800/6000/6300
17 Mast lowered height mm 1800/1900/1985/2085/2135/2235 2520/2590/2690
18 Min. Turning radius mm 1630/2040 1630/2040
19 Min.Aisle width for pallets 800×1200 mm 2230/2625 2230/2625
20 Min.Aisle width for pallets 1000×1200 mm 2260/2650 2260/2650
21 Min.ground clearance mm 50 30
  Performance
22 Travel speed, laden/unladen km/h 5/5 5/5
23 Lift speed, laden/unladen mm/s 130/230 130/230
24 Lowering speed, laden/unladen mm/s 130/230 130/230
25 Gradeability,laden/unladen % 5/7 5/7
  Electrical configuration
26 Drive motor /Lift motor /Steering motor  KW AC1.5/DC3/DC0.15 AC1.5/DC3/DC0.15
27 Battery voltage V 24 24
28 Battery capacity Ah 280 280
29 Brake   Electromagnetic / Regenerative Electromagnetic / Regenerative
30 Controller   CURTIS 1230 CURTIS 1230
  Weight
31 Battery weight kg 235 235
32 Service weight with battery kg 1648 1680
