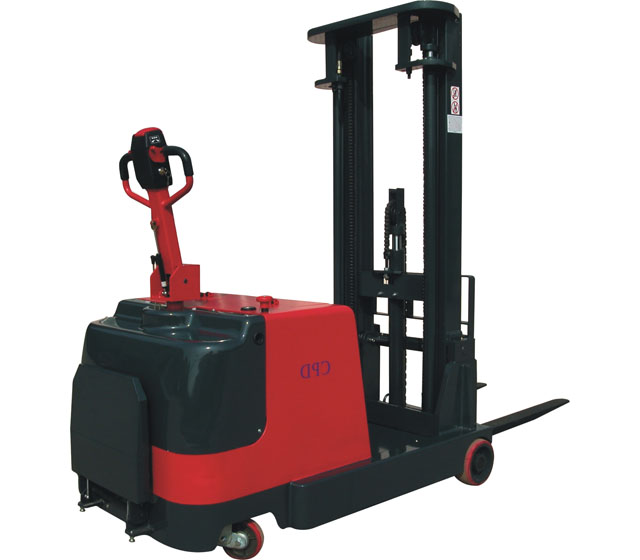

Name：CPD-SB Counterbalanced Stacker
Click to view larger
  Feature：
1. Massive piles up,on the shelf to pile up the cargo.
2. Level transporting.
3. Range:Load capacity1.0-1.5T;Lifting height0-3000MM.
4. Single?double face pallet.
  Specifications：
Model CPD0.5-SB CDD0.75-SB CPD1.0-SB
Capacity Q kg 500 750 1000
Lift Height L6 mm 1600/2500 1600/2500 2500/3000
Outline Size LxWxH mm 2600x820x 1800 2460x820/x1880 2624x900/x1873
Fork Length L4 mm 920 920 800-1000
Hydraulic Pack System kw 1.1 1.1 2.2
Drive Motor kw 0.75 1.1 1.5
Drive speed km/h 4.5 4.3 4.3
Turning Radius R mm 1450 1500 1450
Aisle stacking width mm 2280 2280 2280
Battery V/Ah 24/190 24/250 24/300
Weight kg 1080 1250 1520
