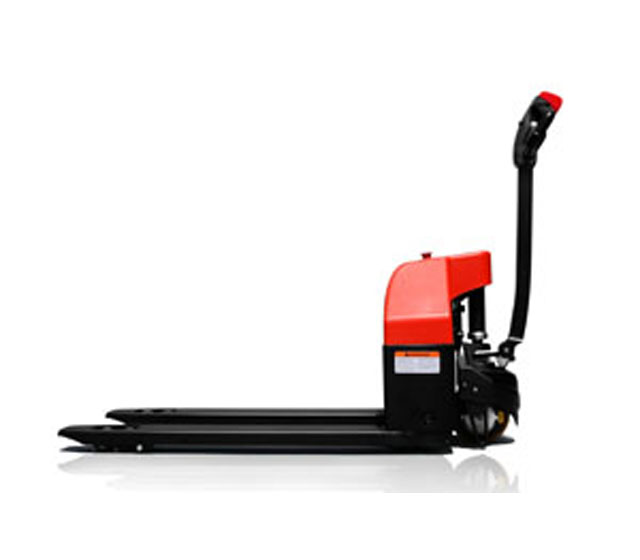

Name:EPT20-15ET (DC) Power Pallet Truck
Click to view larger
  Feature:

To meet the needs and desires of consumers of market segmentation, this season OKUTSU launches new MAXIMIN series electric pallet truck model E-TRUCK with competitive performance, highly quality, and very attractive price.

The philosophy of MAXIMIN Series is using minimal truck to create maximal performance and efficiency, meanwhile save energy, save human force, save material, save your cost.

Basic specification below:

Powerful

Use high quality assembly from industry’s mature suppliers to ensure.
the funciton of the truck’s power system and its stabilty.

1. Strong power, effort saving
Capacity 1.5 ton, reaching most customers’ demands in goods transit
Comparing to the hand pallet truck, more efficienct and covenient while lifting, lowering and walking
2. Solid and durable
High quality assembly result in longer truck operation life
Solid body frame

Delicacy

Reasonably removed unnecessary accessories to save materials and improve body frame intensity

1. Beautiful appearance
Semi-enclose appearance design, brief and elegant
2. Delicacy structure with excellent detail
Delicacy inner and outer struture design with excellent details
3. Easy to maintenance
Modular produce, easy to dismantle and assamble
60AH Battery, free maintenance

Mini

Ingenious designed, increase the space utilization
1. Small body , space saving
Small size makes passing in narrow pathway easily
2. Agility and convenience in operation
Light body makes operation conveniently
3. Ecnomic and energy saving
cost efficient, origin design revolutionary truck in forklift industry
60AH Battery, energy saving and environment friendly.


  Specifications:
Model EPT20-15ET
Load capacity Q (kg) 1500
Service weight (Incl. battery) kg 205
Fork height, lowered h 13 (mm) 85
Overall length l 1 (mm) 1600
Overall width b 1 / b 2 (mm) 560
Fork spread b 5 (mm) 560
Aisle width, 1000×1200 pallet crossways Ast (mm) 1930
Aisle width, 800×1200 pallet lengthways Ast (mm) 1780
Outer turning radius Wa (mm) 1475
Travel speed, laden/ unladen km/ h 3.5/4
Maximum gradeability, laden/ unladen S 2 5 min. % 3/10
Battery voltage/ rated capacity (5h) V/ Ah 24/60*2
