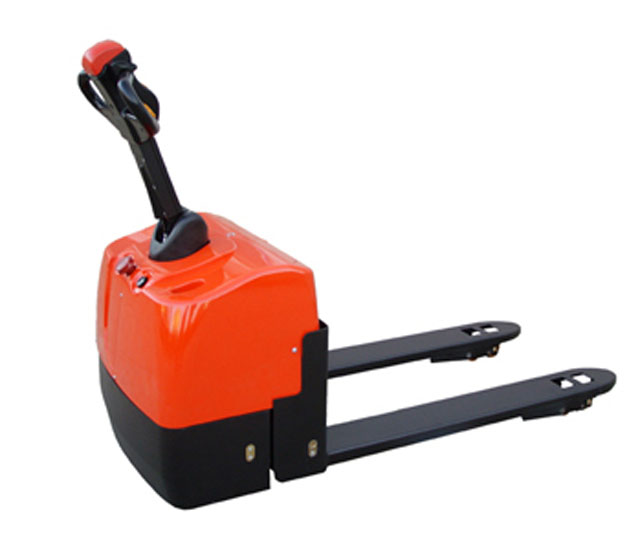

Name:CBD13 (AC)  Walkie Power Pallet Truck
Click to view larger
  Feature:
1. High strength chassis;
2. DC power motor, maintenance-free battery;
3. Original America-made Curtis controller; AMP connector;
4. Electronic and mechanical lift limitation devices;
5. Overload relief valve;
6. Open inner-structure, number wire harness with clear arrangement, convenient for maintenance;
7. Casting handle equipped with pneumatic spring; Auto-folding platform for option;
8. Power painting crafts, pipelining assembly;
9. Dacroment bolt, prevent from rusting;
10. ERP system backup for purchase, produce and after-sales service.
  Specifications:
Model CBD13 (AC)
1 Characteristics Capacity kg 1300
2 C Load centre mm 600
3 Operator type Walkie
4 Dimensions H Lifting height mm 120
5 H1 Groundclearnce+fork thickness mm 74/85
6 H2 Raised height mm 194/205
7 B1 Standard fork width mm 540/685
8 L1 Fork length mm 1150 1200
9 S Fork thickness mm 44
10 E Fork width mm 160
11 L Overall length mm 1570 1620
12 Rear height 685
13 Rear length mm 420
14 B Overall width mm 750
15 Wa Minimum turning radius mm 1380 1420
16 Minimum aisle width mm 1770 1820
(1000*1200mm)
17 Performance Maximum travel speed Laden km/h 4.6
Unladen km/h 5.9
18 Maximum lifting speed Laden m/s 0.056
Unladen m/s 0.06
19 Maximum lowering speed Laden m/s 0.057
Unladen m/s 0.059
20 Gradeability Laden % 5
Unladen % 7
21 Weight Service weight without battery kg 244
22 Service weight with battery kg 292
23 Wheel(drive/load)
