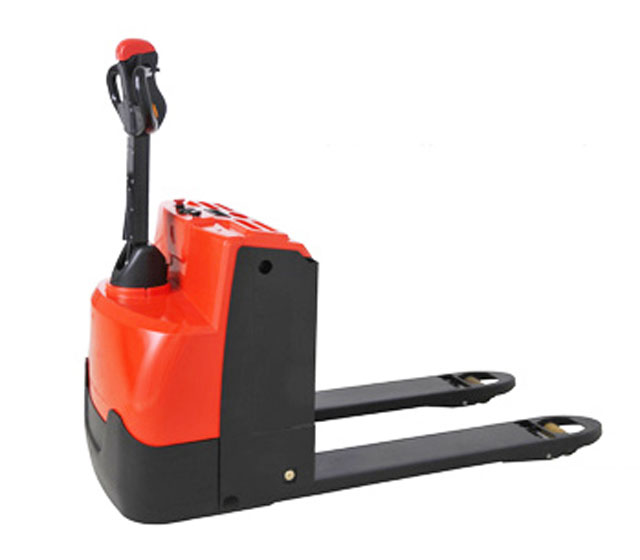

Name:CBD20 (AC) Walkie Power Pallet Truck
Click to view larger
  Feature:
1. Progressive speed AC control system and electronic steering system.
2. Tilter head ergonomically designed for maximum operator comforable,and control buttons positioned to allow operation with either hand.
3. Tight but friendly components lay-out , easy access to maintenance and reduce downtime.
4. Two strong side lifting cylinders with one extra central cylinder design ensure stable loading and unloading operations.
5. Assemblied battery compartment cover can be easily open and removed , to easy vertical-lifting battery change and charge , reduce downtime.
6. Durable and rigid frame and forks construction ensure the truck to handle heavy loads.
7. Entry and exit rollers ensure a fast, smooth handling operation.
  Specifications:
Model CBD20 (AC)
1 characteristics capacity kg 2000
2 load centre mm 600
3 operator type walkie
4 Electric power steering(EPS) standard equipped
5 dimensions h lifting height mm 110
6 H1 ground clearance+fork thickness mm 85
7 B1 standard fork width mm 540/685
8 L1 fork length mm 1150/1200
9 S fork thickness mm 55
10 E fork width mm 185
11 L overall length mm 1830
12 L2 rear length mm 680
13 B overall width mm 720
14 Wa minimum turning radius mm 1655/1705
15 aisle width (800*1200mm pallet): horizonal/vertical mm 2255/2355
16 aisle width (1000*1200mm pallet): horizonal/vertical mm 2405/2455
17 performance maximum traveling speed laden km/h 4.5
18 unladen km/h 4.5
19 maximum lifting speed laden m/s 0.056
20 unladen m/s 0.06
21 maximum lowering speed laden m/s 0.057
22 unladen m/s 0.059
23 gradeability laden % 5
24 unladen % 7
25 weight Service weight without battery Kg 380
26 Service weight with battery Kg 600
27 wheel wheel(drive/load) Type PU
28 wheel quantity(drive/load) 1D+4L/1D+2L
29 D1 size of steering wheel mm ¢248*75
30 D2 size of Loading wheel mm ¢84*58
31 size of balance wheel mm
32 wheel base mm 1250/1300
33 driving system travelling motor kw 1.5 AC
34 lifting motor kw 2.0 DC
35 battery capacity/type v/Ah 24v/210ah/industry
36 maximum battery box size(L*W*H) mm 650*200*530
37 travelling brake regenerate
38 brake type Electromagnetic
39 control system CURTIS 1230-2402

Right reserved for technical changes and improvements.?
