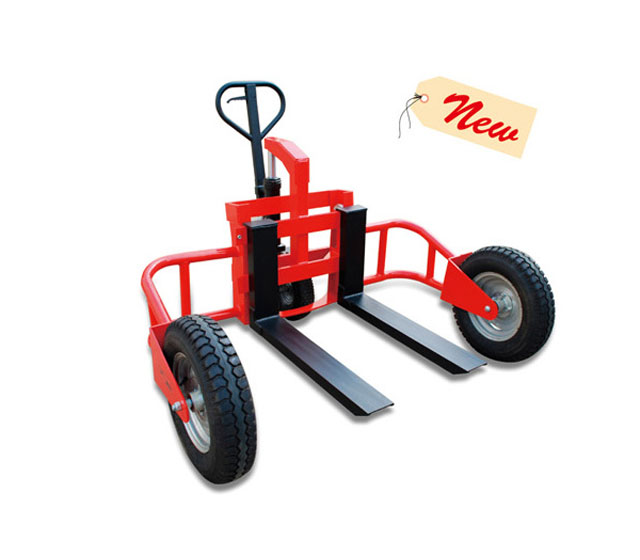

Name:RPA Rough Terrain Pallet Truck
Click to view larger
  Feature:

Rough Terrain Trucks RPA series

1. Great equipmet to move heavy loads up till 1250kg.
2. Ergonomic design of the frame to reduce the operation effort.
3. Meanwhile the truck is robust enough for the purpose to work outside such as builders yard, garden centers where there’s only an occasional need for moving pallets by forklifts or where no ordinary forklift or even pallet truck can go.The fork is adjustable for special dimension pallet.

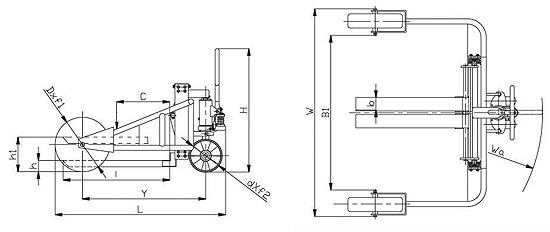

  Specifications:
Model RP1000A RP1250A
Rated Capacity (kg) 1000 1250
Max.Fork Height h1 (mm) 240 240
Min.Fork Height h (mm) 70 70
Fork Length l (mm) 800 (860) 800 (860)
Load Center C (mm) 400 (430) 400 (430)
Adjustable Fork Width (mm) 216-680 256-680
Individual Fork Width b (mm) 100 120
Distance inside the Front Wheel B1(mm) 1230 1230
Axle Distance between front Wheel and rear steering wheel Y (mm) 973 973
front Load Wheel (Dia. × Wid) (mm) Ø568X145 Ø568X145
Rear Steering Wheel (Dia. × Wid) (mm) Ø250 Ø250
Turn Radius Wa (mm) 1500 1500
Overall Size (L × W × H) (mm) 1406X1670X1280 1406X1670X1280
Net Weight (kg) 210 238
