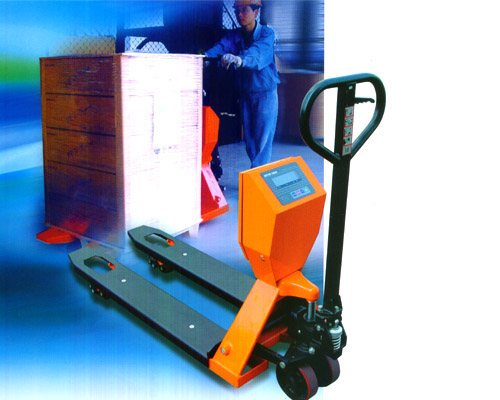

Name:TLD scale pallet truck
Click to view larger
  Feature:

This lightweight yet strong tubular frame design handles evenly distributed loads up to 2,000 lbs. (2,000 lbs. at 12" horizontal load center and 1,500 lbs. at 15" horizontal load center). Large wheels allow for movement over most surfaces. Use at construction sites, gravel pits and nurseries. Features large 17" front pneumatic tires and 10" pneumatic steering wheels. Individual fork width is 4". Easy to operate with three position handle, UP, DOWN and NEUTRAL. Optional Tow Bar package allows the All Terrain Pallet Truck to be towed by an ATV or small utility tractor.

  Specifications:
Model NPT10-1 NPT10-2
Rated Capacity kg 1100 1100
Length of Fork (mm) *1 LP mm 800 800
Width of Straddle (Interior) D mm 1040 1210
Width of Straddle (Exterior) B mm 1300 1470
Weight kg 140 148
Radius degree 180 ° 180°
Handle Wheels (mm) mm 270 270
Load Wheels (mm) mm 437 437
