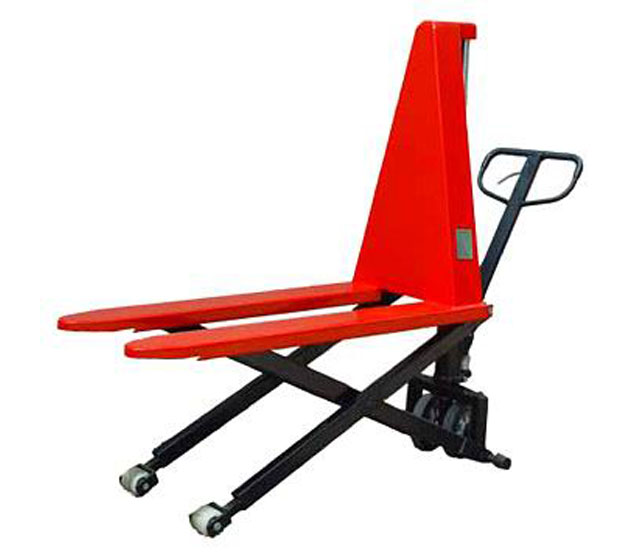

Name:NPH Standard High Lift Pallet Truck
Click to view larger
  Feature:
1. Ideal design, pallet truck with the numerous possibilities makes this unit very suitable as pallet truck / scissor lift table.
2. Telescopic jack composed of 2 piston rods creating light pumping force giving great rigidity.
3. Supports legs come in to operation automatically. It prevents the unit from moving when the forks are raised to keep the safety of the operator.
4. Truck automatically shows the descending speed when heavy goods loaded to help prevent cargo damage.
5. 210 degree turning radius.
6. 2 lateral stabillzers ensure good stability when raised.
  Specifications:
Model NPH1000 NPH1500 NPH1000(N)
Capacity (kg) 1000 1500 1000
Total lift height (mm) 800 800 800
Lowered fork height (mm) 85 85 85
Size of fork (mm) 162x50 162x50 162x50
Fork length (mm) 1150 1150 1150
Width over the forks * (mm) 520/550/685 520/550/685 550/680
Height of handleless (mm) 975 1050 975
Steering wheel (mm) ?150x50 ?150x50 ?180x50
Fork wheel (mm) ?74x50 ?74x50 ?74x50
Truck weight (kg) 112 125 133
pcs/20" container (pcs) 120 100 72

Remark:
1. Fork length can be changing with spercial requirments.
2. NPH1000(N) is one-clyinder-system.
