Name：

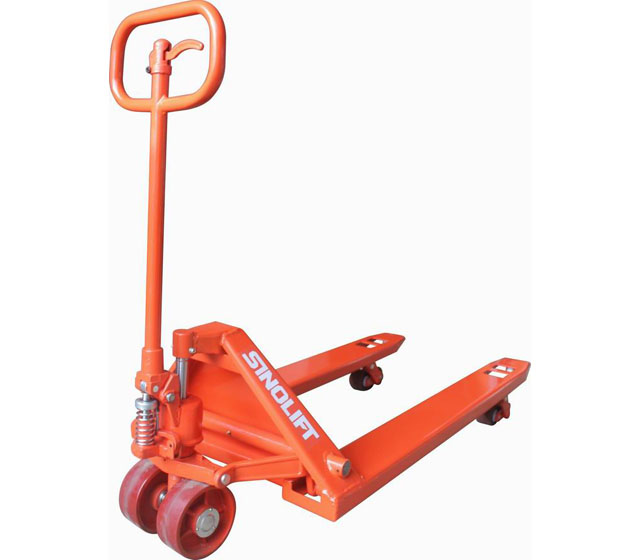

BL Hand Pallet Truck
Click to view larger
Feature：
1. Features high quality welded steel construction with a durable powder coat finish.
2. high quality welded steel construction with a durable powder coat finish.
3. Japanese design for smaller size pallet openings.
Specifications：
MODEL
BL20/BL25/BL30
Capacity
2000kg 2500kg 3000kg
4500lbs 5500lbs 6600lbs
Fork width
520mm 550mm 685mm
21" 27"
Fork length
1100mm 1150mm 1220mm
36" 42" 48"
Lowered height
64mm 74mm 85mm
2.5" 2.9"
Lifting height
200mm
7-7/8"
Load wheel
Single / Tandem Nylon / Polyurethane
Steering wheel
Nylon / Polyurethane / Rubber
Weight
80kg
180lbs
