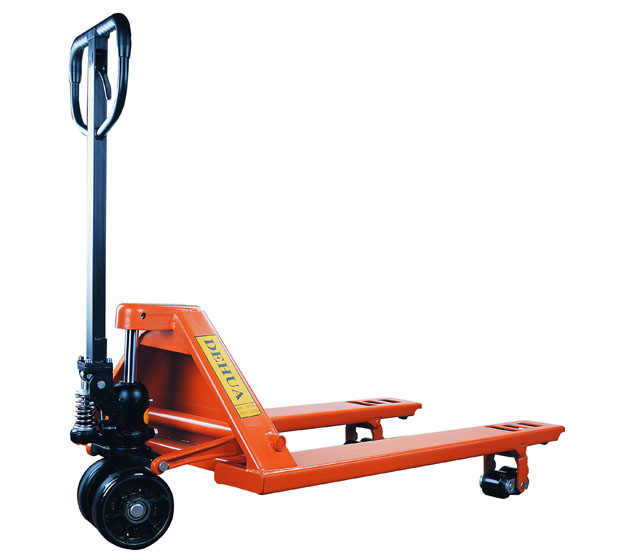

Name:PTH Hand pallet truck (new)
Click to view larger
  Feature:
Quality engineered for strength, dependability and long life. OKUTSU’s choice as the pallet jack on the market today. Standard models come with a standard capacity of 2500 Kg.

The hydraulic system on this pallet jack is the result of years of research and development, including a load limiter that prevents premature wear resulting from overloading. A special design of lowering valve permits gentle lowering of heavy loads. No moisture can get into the unit and it is leak proof.

Lifting - Neutral - Lowering. No foot pedal means extra safety. Neutral allows pumping at the most convenient angle to the operator and free handle movement when the truck is in motion. The handle returns automatically to the vertical position.

All Parts guaranteed for a full year, except where used in Acidic or Alkali Environments.

Features Include:

1. Safety designed loop handle, includes neutral position, and fingertip release.
2. Spring-o-matic handle self returns.
3. 230pivot action maneuvers in compact area.
4. One piece formed steel "C" channel tapered, reinforced forks.
5. Leak-proof pump assures maintenance-free service.
6. Hard chrome-plated ram and piston.
7. Urethane seals and wipers.
8. Large Steer wheels with "Ball Thrust" steering.
9. Sealed ball bearings throughout.
10. Bearings at all pivot points can be lubricated easily.
11. Tapered fork ends and nylon rollers permit easy entry and exit of pallets.
12. Nylon or Polyurethane wheels and load rollers available.
13. Only 1 snap ring and 4 pins to remove the hydraulic unit.
14. Painted quality safety color after anti-rust treatment.
  Specifications:
Model PTH15/PTH20/PTH25/PTH30
Capacity kg 1500/2000/2500/3000
Max.Fork Height (H) mm 95/121/165/195/200
Min.Fork Height (S) mm 35/51/65/75/80
Fork Length (L) mm 1150/1220
Overall Fork Width(B) mm 460 520 685
Every Fork Width(E) mm 153
Load Roller Diameter mm 78×70/78×100
Nylon/Polyurethane
Steering Wheel Diameter mm 200/180
Nylon/Polyurethane/Rubber
Net.Weight kg 84 89 92
Quantities/20ft Container pcs 180 174

Remark: 3500kg(NA35)/5000kg(NA50) available on request.
