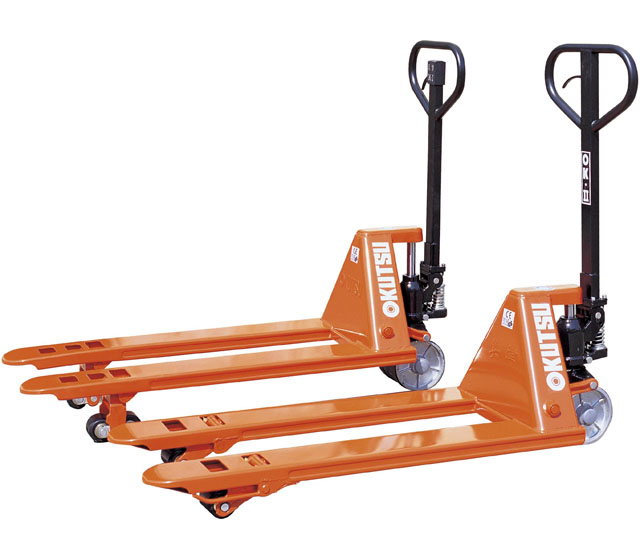

Name:OK-II Economic Hand Pallet Truck
Click to view larger
  Feature:
1. 5500 Lbs. Capacity.
2. 27"W x 48"L Reinforced Steel Forks.
3. Floor Protective Wheels & Rollers.
4. Fully Hydraulic Pump Assembly.
5. No Trip Spring Loaded Safety Handle.
6. 3 Position Hand Control.
7. 2-Year Pump Warranty.

Durable and economical, 27"W x 48"L self-contained hydraulic pallet truck. Heavy-gauge steel channel frame with 6 1/2"W reinforced tapered steel forks designed for smooth pallet entry and exit. Premium hydraulic pump with spring-loaded, safety loop handle has a three-position fingertip control (raise/lower/neutral) for fast lifting and efficient moveving. The 7"-dia. floor-protective steer wheels and 2.9"-dia. poly load rollers with 180 steering radius allows better maneuvering in tight areas. 7 1/2" raised ht, 2.9" lowered ht. 2-Year Pump Warranty. Weighs 180 lbs.
  Specifications:
Model OKII-15 OKII-20
Capacity kg 1500 2000
Min. Height of Forks mm 80 65 80 65
Max. Height of Forks mm 200 165 200 165
Steering Wheels mm ø180X50 ø180X50 ø180X50 ø180X50
Load Wheels Single mm Ø78x100 Ø78x100 Ø78x100 Ø78x100
Tandem mm Ø78x70 Ø78x70 Ø78x70 Ø78x70
Forks Size mm 150X60
Forks Width mm 480 / 520 / 550 / 685
Forks Length mm 800/900/1000/1067/1100/1150/1220
