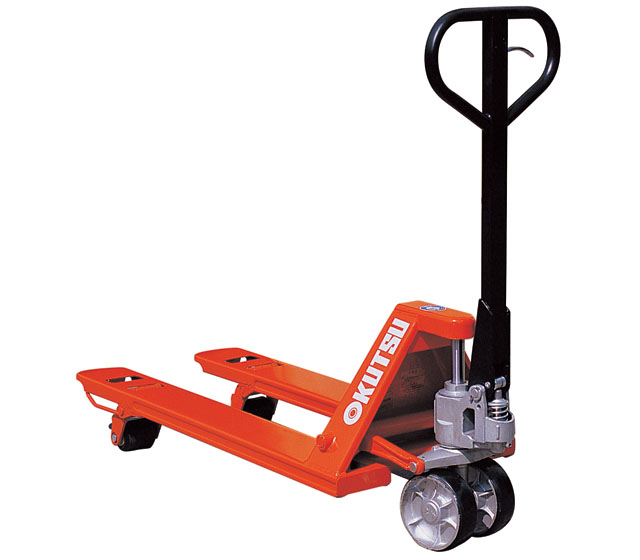

Name:NPA  Standard Hand pallet truck
Click to view larger
1. Safety designed loop handle, includes neutral position, and fingertip release.
2. Spring-o-matic handle self returns.
3. 230pivot action maneuvers in compact area.
4. One piece formed steel "C" channel tapered, reinforced forks.
5. Leak-proof pump assures maintenance-free service.
6. Hard chrome-plated ram and piston.
7. Urethane seals and wipers.
8. Large Steer wheels with "Ball Thrust" steering.
9. Sealed ball bearings throughout.
10. Bearings at all pivot points can be lubricated easily.
11. Tapered fork ends and nylon rollers permit easy entry and exit of pallets.
12. Nylon or Polyurethane wheels and load rollers available.
13. Only 1 snap ring and 4 pins to remove the hydraulic unit.
14. Painted quality safety color after anti-rust treatment.
MODEL NPA20-510 NPA25-510
Rated Capacity 2000 kg 2500 kg
Width across forks 550 mm 550 mm
Fork Length 1150 mm 1150 mm
Lowered fork height (Min) 85 mm 85 mm
Total lift height (Max) 200 mm 200 mm
Steering Wheels 200 (Rubber or Poly) 200 (Rubber or Poly)
Fork Wheels 78 80 (Polyurethane in double) or 78*100 (Polyurethane in Single)
Weight (kg) 78 82
Q’ty/20Fcl 180pcs 180pcs
