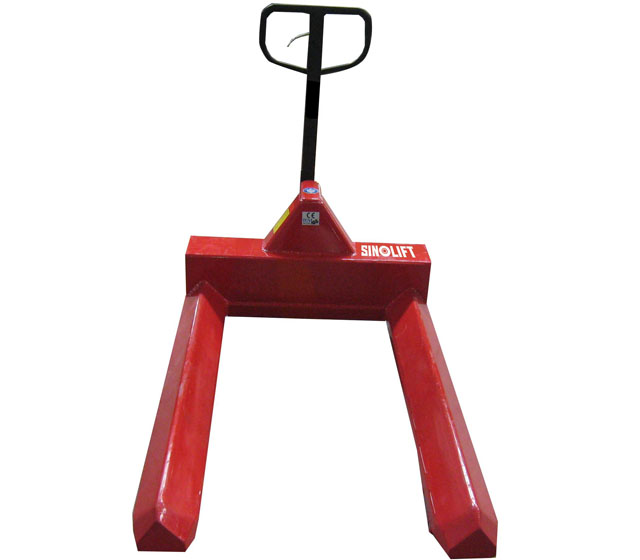

Name:NPR Reel  Pallet Truck
Click to view larger
  Feature:

For handling cylindrical loads where the lifting operation is achieved without pallets cylindrical loads can be lifted directly from the floor, transported, and deposited in their un-palletized state. This Roll Pallet truck is mainly designed for carrying horizontal transport loads such as rolls, reels, cable drums etc.

WHEN CALLING, BE READY TO SPECIFY THE ROLL DIAMETER, ROLL LENGTH AND
WHETHER THE ROLL IS HARD OR SOFT.


  Specifications:
Model NPR20S NPR20M NPR20L NPR20SL
Capacity Q kg 2000

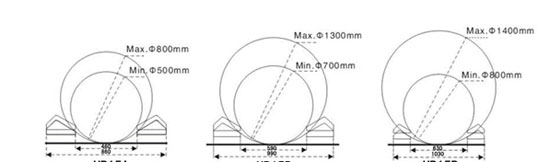

Reel diameter mm 400-600 600-800 800-1200 1200-1600
With overall forks B mm 760 850 1000 1150
Steering wheel mm Φ200x50
Load roller Single mm Φ82x93
Load roller Tandem mm Φ82x70
Fork length l mm 800/900/1000/1100/1150/1220
