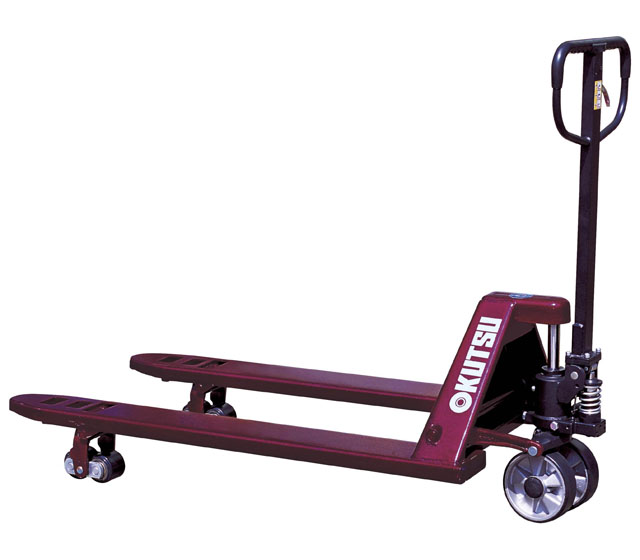

Name:NPF Quick Lift Hand Pallet truck
Click to view larger
1. An idea truck for light load handling;
2. It takes just 3 or 4 strokes reached Max. Height.
3. With Double control valve to keep Doubl speed pump work;
4. Whenever heavy load ,the quick lift hydraulic system automatically switches to normal operation.
5. More load, more slowly descend.
MODEL NPF25-511 NPF25-712
Rated Capacity (Kg) 2500 2500
Width over forks (mm) W1 460,520,540,550 680,685
Fork length (mm) L1 81,098,010,701,150 12,001,220
Min. Fork Height (mm) H2 80 80
Max. Fork Height (mm) H1 200 200
Steering Wheel (mm) *1 A 180x62 NYLON or PU 180x62 NYLON or PU
Load Wheel (mm) *2 B 78x70 (Tandem) 78x70 (Tandem)
Weight (kg) 78 81
Under Clearance (mm) 40 40
Fork width (mm) W2 150 150
Width inside forks (mm) 160,220,240,250 380,385
Stroke length (mm/stroke) 50 50
Overall Height (mm) C 1200 1200
Overall Length (mm) 1500 1570
Steer Angle 230 deg 230 deg
Drive Unit Length (mm) 370 370

*1 Rubber wheel is option.
*2 The 78*100mm single load wheels are optional.
