Feature： |
|
|

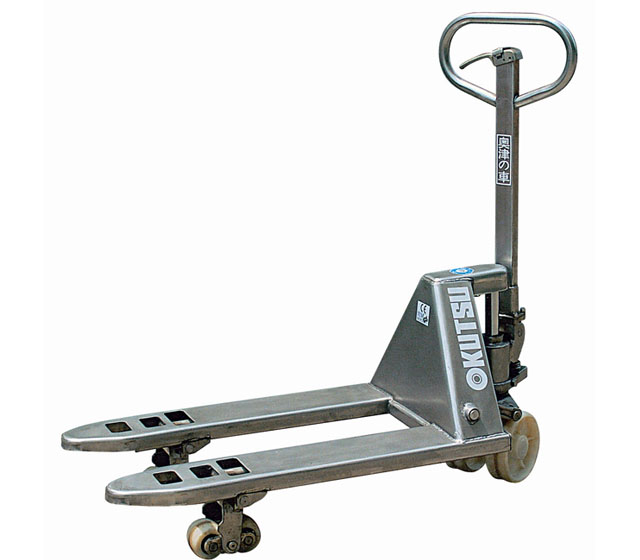

This pallet trucks is ideal for use in food, chemical or pharmaceutical plants where trucks are required to be washed and sanitary.
Stainless Steel Truck won’t rust or corrode and features all stainless steel parts.
Feature a spring-loaded handle with three-position fingertip control-raise/neutral/lower.
230° steering arc makes maneuvering in tight spaces easier.
|
|
|
Specifications： |
|
|
| MODEL |
|
NPS series |
| Rated Capacity (Kg) |
|
1500/2000/2500/3000/5000 |
| Width over forks (mm) *1 |
W1 |
460/520/540/550/680/685 |
| Fork length (mm) *1 |
L1 |
810/ 980/1070/1150/1220 |
| Min. Fork Height (mm) |
H2 |
80 |
| Max. Fork Height (mm) |
H1 |
200 |
| Steering Wheel (mm) |
A |
180x62 NYLON or PU |
| Load Wheel (mm) *2 |
B |
78x70 (Tandem) |
| Weight (kg) |
|
78 |
| Under Clearance (mm) |
|
40 |
| Fork width (mm) |
W2 |
150 |
| Width inside forks (mm) |
|
160,220,240,250 |
| Strokes |
|
50 |
| Overall Height (mm) |
C |
1200 |
| Overall Length (mm) |
|
1500 |
| Steer Angle |
|
230 deg |
| Drive Unit Length (mm) |
|
370 |
*1 W1 and L1 with over width and over length can be made according to customer’s requirement.
*2 78*100 single wheels are options.
|
|
|
|
|
