Feature： |
|
|

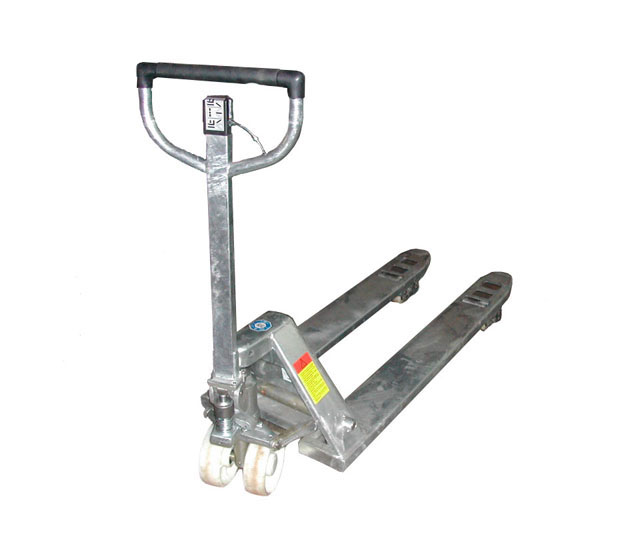

| OKUTSU supply a wide range of pallet trucks for specialist applications and to comply with particular legislation. Galvanized trucks are designed for corrosive environments, together with the food and pharmaceutical industries where high standards of hygiene are required. A zinc version is also available for non - food applications. |
|
|
Specifications： |
|
|
| MODEL |
|
NPG series |
| Rated Capacity (Kg) |
|
1500/2000/2500/3000/5000 |
| Width over forks (mm) *1 |
W1 |
460/520/540/550/680/685 |
| Fork length (mm) *1 |
L1 |
810/ 980/1070/1150/1220 |
| Min. Fork Height (mm) |
H2 |
80 |
| Max. Fork Height (mm) |
H1 |
200 |
| Steering Wheel (mm) |
A |
180x62 NYLON or PU |
| Load Wheel (mm) *2 |
B |
78x70 (Tandem) |
| Weight (kg) |
|
78 |
| Under Clearance (mm) |
|
40 |
| Fork width (mm) |
W2 |
150 |
| Width inside forks (mm) |
|
160,220,240,250 |
| Strokes |
|
50 |
| Overall Height (mm) |
C |
1200 |
| Overall Length (mm) |
|
1500 |
| Steer Angle |
|
230 deg |
| Drive Unit Length (mm) |
|
370 |
*1 W1 and L1 with over width and over length can be made according to customer’s requirement.
*2 78*100 single wheels are options.
|
|
|
|
|
