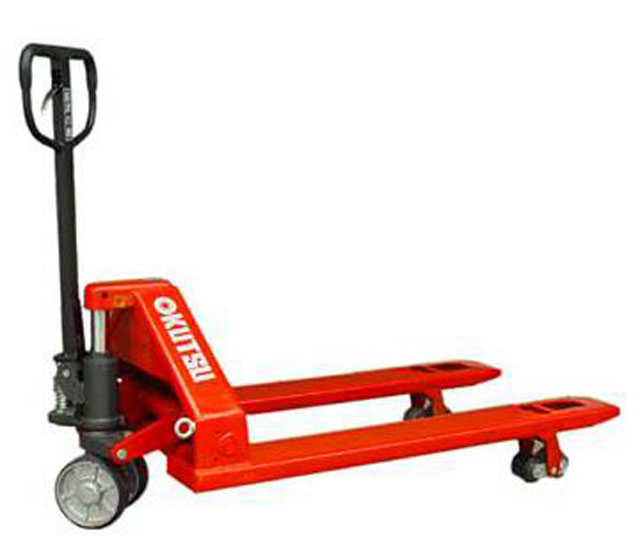

1. Heavy duty pump and steering wheel reduces the actural pully effort required. 2. Large pistion to avoid large effort force. 3. Its independent oil storage room ensures good leakproofness. 4. 210 degrees steering angle allows maximum maneuverability. 5. Available Ex Stock in spercial sizes.
Specifications：
MODEL
NPV50-510
NPV50-712
Rated Capacity (Kg)
5000
5000
Width over forks (mm) *1
W
540
685
Fork length (mm) *1
L
1070
1220
Min. Fork Height (mm)
H2
80
80
Max. Fork Height (mm)
H1
200
200
Steering Wheel (mm) *2
A
200x62
200x62
Load Wheel (mm) *3
B
78x70 (Tandem)
78x70 (Tandem)
Weight (kg)
116
120
Under Clearance (mm)
40
180
Fork width (mm)
W2
160
160
Width inside forks (mm)
200
365
Stroke length (mm/stroke)
10
10
Overall Height (mm)
1248
1248
Overall Length (mm)
1500
1570
Steer Angle
210 deg
210 deg
Drive Unit Length (mm)
400
400
*1 W and L with over width and over length can be made according to customer’s requirement. *2 180x62 steering wheel is optional. *3 The 78*100mm single load wheels are optional.
