Products
Current position:Home >> Products

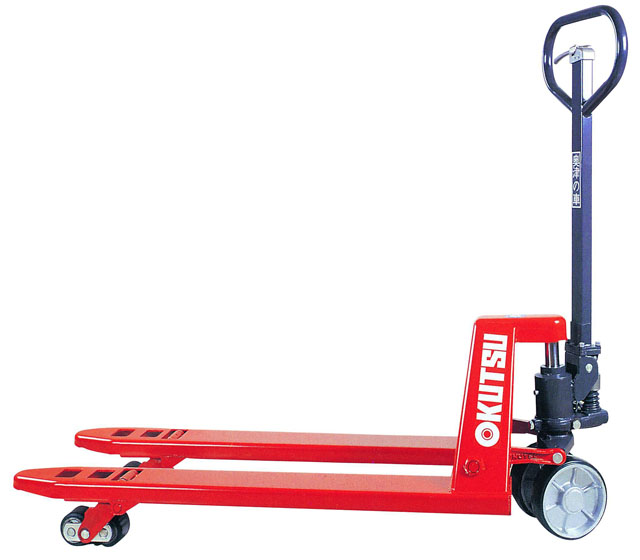

Name:NP Standard Hand pallet truck
Click to view larger
  Feature:
1. GS/TUV approved in Germany.
2. 1 year warranty period.
3. lighter weight easier rolling design.
4. fully rebuildable pump unit with overload valve.
5. hard chrome-plated lift ram and pump piston.
6. entry 7 exit ramps for prolonged trouble-free use.
7. high strength, one-piece tapered forks with precision size.
8. 3 coats stoving-paint.
9. heavy duty ball bearings for lower maintenance.
10. highest quality seals and wipers.
11. easy to use 3-position control lever.
12. assemble instruction and parts book with (itemized prices) are supplied.

Options:

1. For roller: single or tandem, Polyurethane or Nylon.
2. Low-profile: Min. fork height 65mm.
3. Stainless steel pallet truck.
4. Pallet truck brake system.
5. Pallet truck with scale.
6. Over length and over width pallet trucks are available.
7. OEM productions are acceptable.
8. 1500kg, 2000kg, 2200kg, 3000kg are also available.
  Specifications:
Model Capacity Forkwidth Forklength Min. Height Max. Height Steer wheel Load Wheel Weight
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NP10-48 1000 460 810 80 200 180*62 78*100 (single) 66
NP10-49 460 980 70
NP10-58 520 810 66
NP10-59 520 980 70
NP10-510 520 1070 71
NP10-511 520 1150 73
NP10-712 685 1220 79
NP15-48 1500 460 810 80 200 180*62 78*100 (single) 66
NP15-49 460 980 70
NP15-58 520 810 66
NP15-59 520 980 70
NP15-510 520 1070 71
NP15-511 520 1150 73
NP15-610 600 1070 77
NP15-76 685 650 68
NP15-710 685 1070 76
NP15-712 685 1220 79
NP25-58 2500 520 810 80 200 180*62 78*100 (single) or 78*70 (tandem) 67
NP25-59 685 980 71
NP25-510 685 1070 72
NP25-511 520 1150 75
NP25-712 685 1220 80
NP30-510 3000 520 1070 80 200 180*62 78*100 (single) or 78*70 (tandem) 84
NP30-511 520 1150 90
NP30-712 685 1220 100
