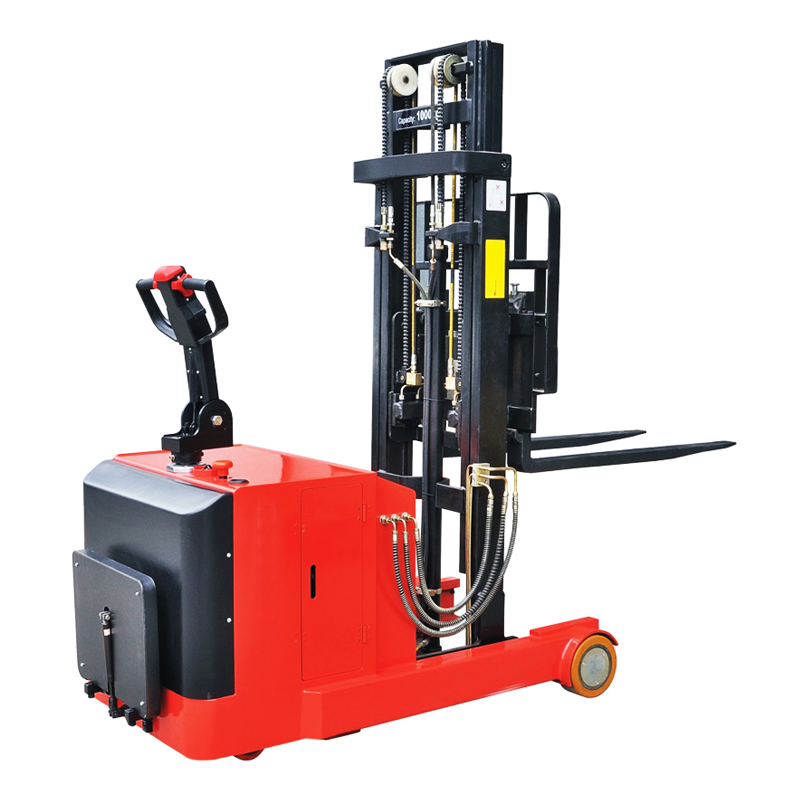

Name：CQD-E Electric reach stacker
	Click to view larger

Feature：

CQD-E series - CAP. 1,000/1,300KGS AC Power Reach stacker

With 1000/1300KGS load capacity, max. lifting height 4.5m, suitable for various conditions use, our WRS series Reach stacker can be a good replacement for forklift.
Equipped with good sight mast and ergonomic design control system, enhance the working efficiency and reduce operator's fatigue. Streamlined appearance, compact design, brings unexpected joy and comfort to the users. Small turning radius and advanced electronic controller system enhance the stability of the vehicle

Specifications：

Model		CQD10E-16/25/30/45	CQD13E-16/25/30/33/45
Operate type		Rider	Rider
Capacity	kg	1000	1300
Load center	mm	500	500
Lifting hieght	mm	1600/2500/3000/4500	1600/2500/3000/3300/4500
Fork length	mm	1070	1070
Turning radius	mm	1650	1750
Outer width of the fork	mm	200~680	200~680
Travel speed	km/h	5.3(laden)/6(laden)	5.3(laden)/(6laden)
Lift speed	mm/s	75(landen)/105(unladen)	75(landen)/105(unladen)
Battery	V/Ah	24/210	24/210
