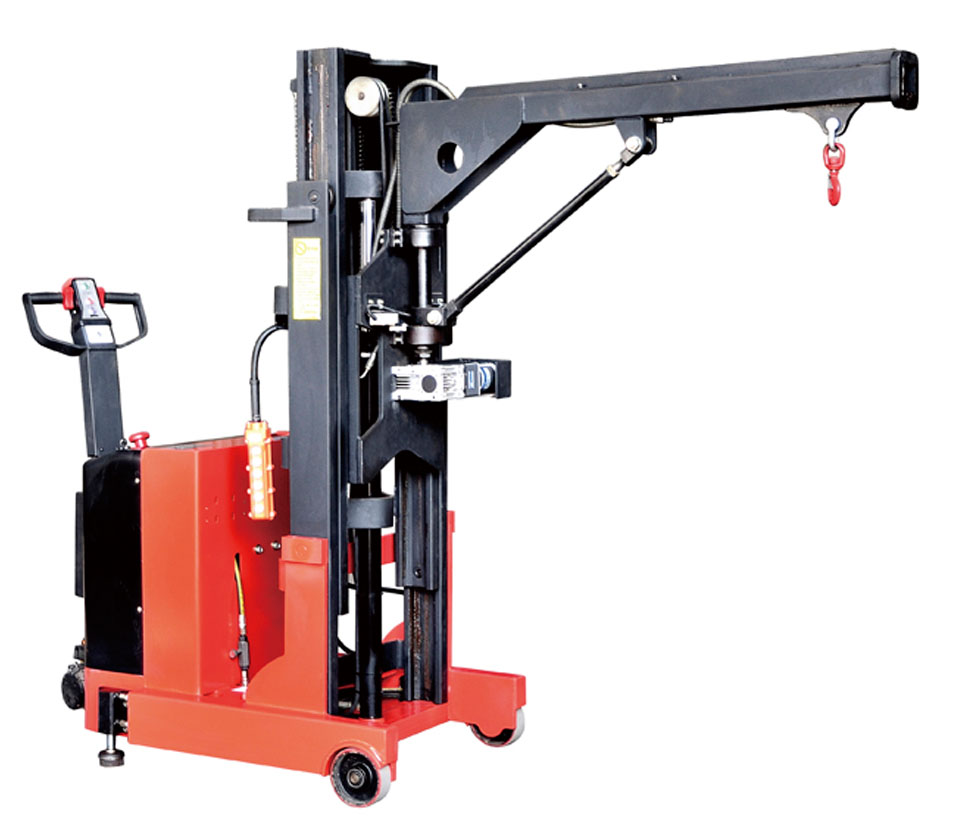

Name:ESJ0.35M Hydraulic Transport Vehicles
Click to view larger
  Feature:
1.Durable and rigid frame construction ensure the stackers to handle heavy loads.
2.Hourmeter and BDI(Battery Discharge Indicator) on time informs the operator of recharge requirements.
3.A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
4.Limit switch mounted on top of mast to precisely set the max. lifting height , avoid any risk of lifting motor overload.
5.Safe Grid covered on the mast to protect operator from any injured risk.
  Specifications:
Feature
Model   ESJ0.35M
Power Type   电动 Battery operated
Drive Type   步行式/站驾式 Walkie/Stand-on
Rated Capacity Q(Kg) 350
Load Center C(mm) 1000
Wheelbase Y(mm) 1280
Reach Distance C1(mm) 200
Wheel
Wheel Material   PU轮
Size of front Wheel b2(mm) ? 78
Size of Drive Wheel b4(mm) ? 230
Track width, Front b10(mm) 408
Dimension
Retract ed Mast Height h1(mm) 1550
Lifting Height h3(mm) 8 00-2500
Hook Primary Height h4(mm) 800
Overalll Length l 1 (mm) 2470
Overalll Width b1|b2(mm) 6 20/780
Crane Jib Length S lell(mm) 1340
Crane Jib Outer Width b5(mm) 80
Min. Turning Radius Wa(mm) 1500
Clearance b7(mm) 66
Height of Frame b8(mm) 860
Performance
Traveling Speed
Laden/Unladen km/h 2.5/3.0
Lifting Speed
Laden/Unladen mm/s 6 0/90
Lowering Speed
Laden/Unladen mm/s 1 20/70
Electric Configuration
Drive Motor k w 0.5
Lifting Motor k w 0.8
Turning Motor k w 0.12
Battery
Battery Capacity V/Ah 12 / 80x2
Battery Weight kg 210
Battery Size
Length m m 269
Width m m 169
Height m m 215
Weight
Service Weight kg 950
