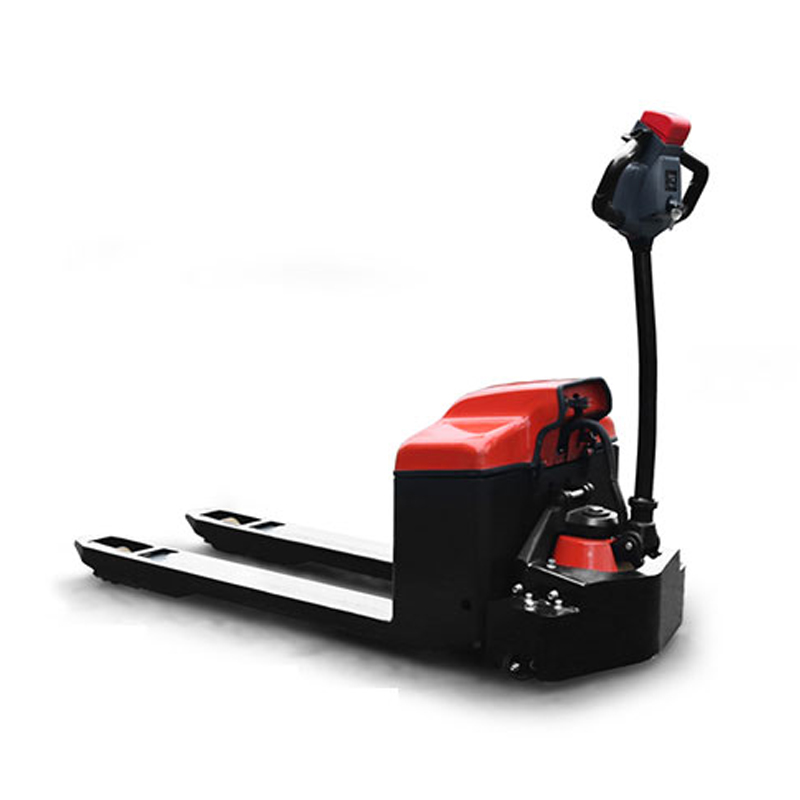

Name：EPT20-ET Rough Terrain Power Pallet Truck
Click to view larger
  Feature：
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Shytger Electric Pallet Jack
Model Number:
EPT20-13ET2 Electric Pallet Jack
Lift Drive / Actuation:
Electric Motor
Item:
Electric Pallet Jack
Model:
EPT20-13ET2 Electric Pallet Jack
Color:
Yellow Or As Your Needs Electric Pallet Jack
Capacity:
1300kg Electric Pallet Jack
Fork size:
50/150/1150mm Electric Pallet Jack
Tyres:
Nylon/ Polyurethane/ Rubb Electric Pallet Jack
Overall length:
1638mm Electric Pallet Jack
Overall width:
568mm Electric Pallet Jack
Outside turning radius:
1485mm Electric Pallet Jack
Certification:
CE/ISO Electric Pallet Jack
  Specifications：

Model EPT20-ET
Rated load(kg) 2000
Load center B11(mm) 600
Operation type Walking style
Standard fork width b5(mm) 560(685)
Fork length(mm) 1150
Fork thickness(mm) 50
Fork width(mm) 150
Overall length(mm) 1685
Minimum turning radius(mm) 1465
Minimum channel width(1000x1200mm,Tray)(mm) 1792
Minimum channel width(800x1200mm,Tray)(mm) 1992
Maximum running speed, full load / no load(km/h) 4/5.5
Maximum lifting speed, full load / no load(m/s) 0.024/0.038
Maximum down speed, full load / no load(m/s) 0.034/0.025
Steep slope, full load / no load(%) 8月16日
Dead weight with battery(kg) 220
Tire material Polyurethane
Running power(kw) 0.75
Lifting power(kw) 0.84
Voltage / capacity(V/Ah) 12*4/30
Running braking Electromagnetic brake
Brake Battery brake
Drive control type DC

The last product：EPT20-SR Ultimately Compact Ride on Pallet TruckThe next product：EPT12-EZ Micro Lithium Pallet TruckReturns the parent directory
