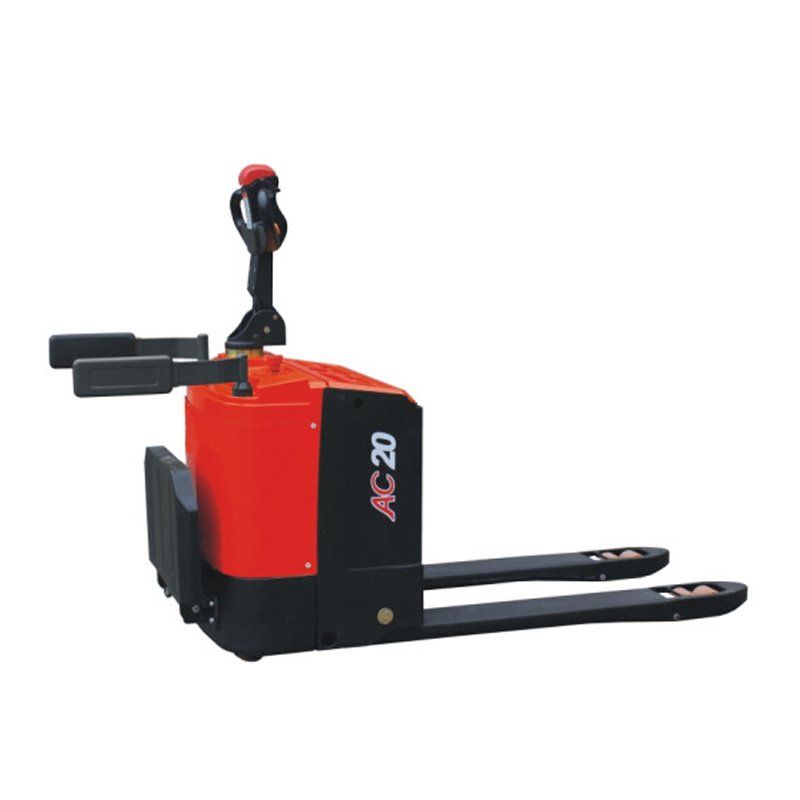

Name:CBD20-410 Pedestrian Power Pallet Truck
Click to view larger
  Feature:
Advantages:
Mechanical Steering – Economic, comfortable, more reliable.
AC Driving System – Lowe noise, quiet, without carton brush and free maintenance.
Electric Lifting – Rapid, efficient, electricity limit switch is STD.
Excellent Design – Easily in and out of the double tray.
Energy conservation – Save money, more environmentally friendly.
AC Controller – Stepless, Strong power, multiple automatic protection.
  Specifications:
  Feature unit
1 Model   CBD20
2 Configuration No.   410
3 Load capacity kg 2000
4 Load center mm 600
5 Wheel base mm 1407
6 Operating type   乘驾式
Stand-on
  Wheels
7 Wheels type   PU
8 Wheel quantity
Driving wheel/Balance wheel /Bearing wheel
  1/1/4
9 Driving wheel size mm ¢248*75
10 Balance wheel size mm 84×70
(双轮/Double wheels
11 Bearing wheel size mm 140x60-
  Dimension
12 Min.fork lowered  height mm 85
13 Max.fork lifting height mm 210
14 Max.lifting height mm 125
15 Outside width between forks mm 550/600/650/685
16 Inside width between forks   220/270/320/355
17 Fork length mm 1150/1200
18 Fork width mm 165
19 Fork thickness mm 55
20 Overall length mm 1874/2247
21 Overall width mm 725
22 Overall height(With handle) mm 1475
23 Overall height(Without handle) mm 940
24 Min.Turning radius mm 1680/2060
25 Min.Aisle width for pallets 800×1200 mm 2000/2320
26 Min.Aisle width for pallets 1000×1200 mm 2030/2340
  Performance
27 Travel speed,laden/unladen km/h 6/6
28 Lift speed,laden/unladen mm/s 20/25
29 Lowering speed,laden/unladen mm/s 40/30
30 Gradeability,laden/unladen % 5/7
  Electrical configuration
31 Drive motor  KW AC 1.5
32 Lift motor   KW DC 1.2
33 Battery voltage / capacity V/Ah 24/210
34 Brake   电磁/再生
 Electromagnetic / Regenerative
35 Controller   CURTIS
  Weight
36 Battery weight kg 190
37 Service weight with battery kg 710
