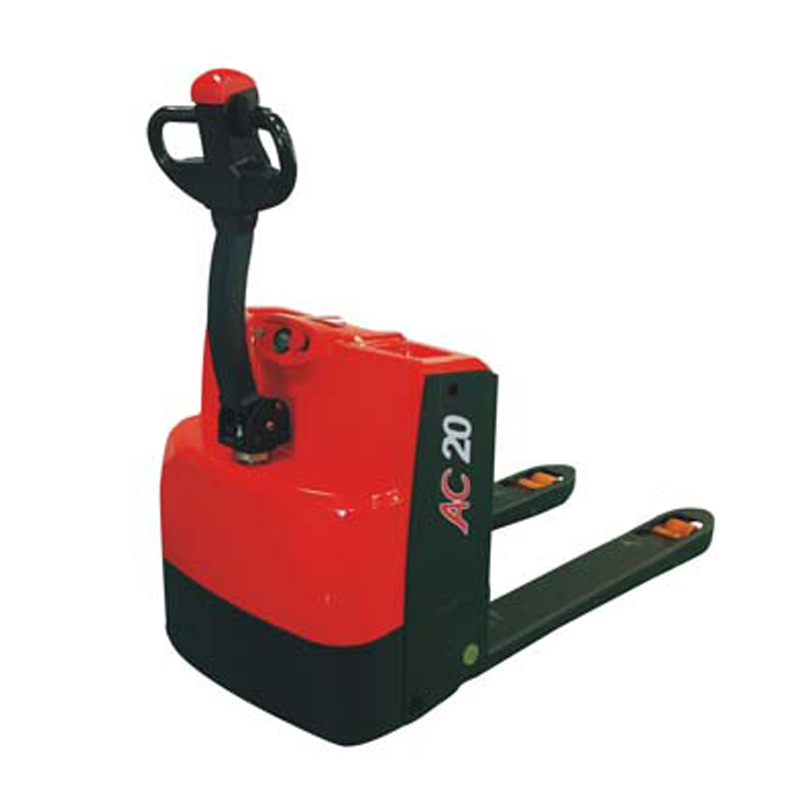

Name：CBD18-180 CBD20-180 Walkie Power Pallet Truck
	Click to view larger

Feature：

Model:CBD18 20-180

Advantages:

◎Mechanical Steering – Economic, comfortable, more reliable.

◎ AC Driving Lystem - Low noise, quiet, withoutcarbon brush and free maintenance

◎Electric Lifting - Rapid, efficient, electricity limit switch is STD.

◎Short Wheelbase –Small turning radius, suitable for narrow space.

◎ Excellent Design – Easily in and out of the double tray.

◎ Energy conservation – Save energy, every day only 5KWH.

◎AC Controller -Stepless, stong power, multiple automatic protection.

Options

140Ah VRLA Battery +Built-in charger.

Handle upright walking function

Specifications：

	Feature	unit
1	Model		CBD18/20
2	Configuration No.		180
3	Load capacity	kg	1800/2000
4	Load center	mm	600
5	Wheel base	mm	1300
6	Operating type		步行式 Walkie
	Wheels
7	Wheels type		PU
8	Wheel quantity Driving wheel/Balance wheel /Bearing wheel		1/1/4
9	Driving wheel size	mm	￠228×75
10	Balance wheel size	mm	￠84×80 （双轮/Double wheels）
11	Bearing wheel size	mm	￠115×55
	Dimension
12	Min.fork lowered height	mm	85
13	Max.fork lifting height	mm	200
14	Max.lifting height	mm	115
15	Overall fork width	mm	550/600/650/685
16	Inside width between forks		220/270/320/355
17	Fork length	mm	1150/1200
18	Fork width	mm	165
19	Fork thickness	mm	55
20	Overall length	mm	1650
21	Overall width	mm	725
22	Overall height(With handle)	mm	1380
23	Overall height(Without handle)	mm	890
24	Min.Turning radius	mm	1450
25	Min.Aisle width for pallets 800×1200	mm	1866
26	Min.Aisle width for pallets 1000×1200	mm	1921
	Performance
27	Travel speed,laden/unladen	km/h	3.5/4.0
28	Lift speed,laden/unladen	mm/s	20/25
29	Lowering speed,laden/unladen	mm/s	40/30
30	Gradeability,laden/unladen	%	5/7
	Electrical configuration
31	Drive motor	KW	AC 0.93
32	Lift motor	KW	DC1.2
33	Steering motor	KW	/
34	Battery voltage / capacity	V/Ah	24/210
35	Brake		电磁/再生 Electromagnetic / Regenerative
36	Controller		CURTIS
	Weight
37	Battery weight	kg	188
38	Service weight with battery	kg	552
