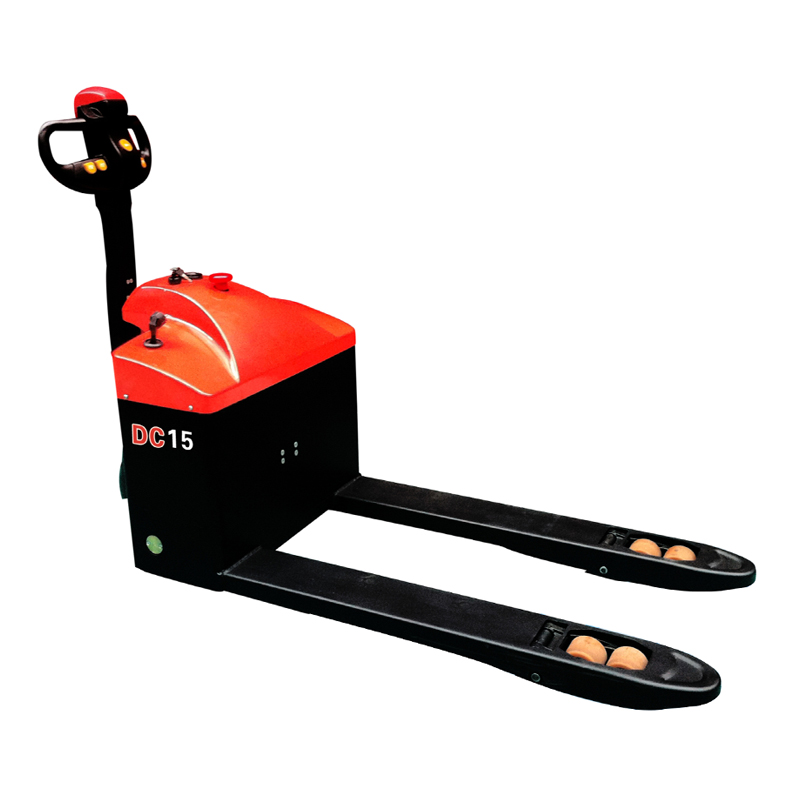

Name：CBD15-170G Mini Power Pallet Truck
	Click to view larger

Feature：

Model:CBD15-170G

Advantages:

◎ Fork fit for double-deck pallet.

◎ Separately excited motor, Strong climbing ability.

◎ Stepless speed control system, easy to operate.

◎ Battery open design, easy to replacement.

◎ Built-in charger is standard.

◎ Sealed batteries free of maintenance, safe operation and no pollution.

◎ Small body, suitable for narrow space.

◎ Automatic lifting limit, safety, energy saving.

◎ Emergency reversing device and Emergency brake switch.

◎ Low noise, low energy consumption, Every day only 2KWh.

Specifications：

	Feature	unit
1	Model		CBD15
2	Configuration No.		170G
3	Load capacity	kg	1500
4	Load center	mm	600
5	Wheel base	mm	1301
6	Operating type		步行式 Walkie
	Wheels
7	Wheels type		PU
8	Wheel quantity Driving wheel/Balance wheel /Bearing wheel		1/0/4
9	Driving wheel size	mm	￠252*67
10	Balance wheel size	mm	￠84×70 （双轮/Double wheels）
11	Bearing wheel size	mm	-
	Dimension
12	Min.fork lowered height	mm	85
13	Max.fork lifting height	mm	205
14	Max.lifting height	mm	120
15	Outside width between forks	mm	550//685
16	Inside width between forks		230/365
17	Fork length	mm	1150/1200
18	Fork width	mm	160
19	Fork thickness	mm	55
20	Overall length	mm	1707
21	Overall width	mm	697
22	Overall height(With handle)	mm	1181
23	Overall height(Without handle)	mm	714
24	Min.Turning radius	mm	1547
25	Min.Aisle width for pallets 800×1200	mm	1920
26	Min.Aisle width for pallets 1000×1200	mm	1953
	Performance
27	Travel speed,laden/unladen	km/h	3/3.5
28	Lift speed,laden/unladen	mm/s	56/60
29	Lowering speed,laden/unladen	mm/s	57/59
30	Gradeability,laden/unladen	%	5/7
	Electrical configuration
31	Drive motor	KW	DC 0.63
32	Lift motor	KW	DC 0.8
33	蓄电池电压/容量 Battery voltage / capacity	V/Ah	24/70
34	制动 Brake		Electromagnetic / Regenerative
35	控制器型号 Controller		HELI（CURTIS）
	Weight
36	Battery weight	kg	48
37	Service weight with battery	kg	275
