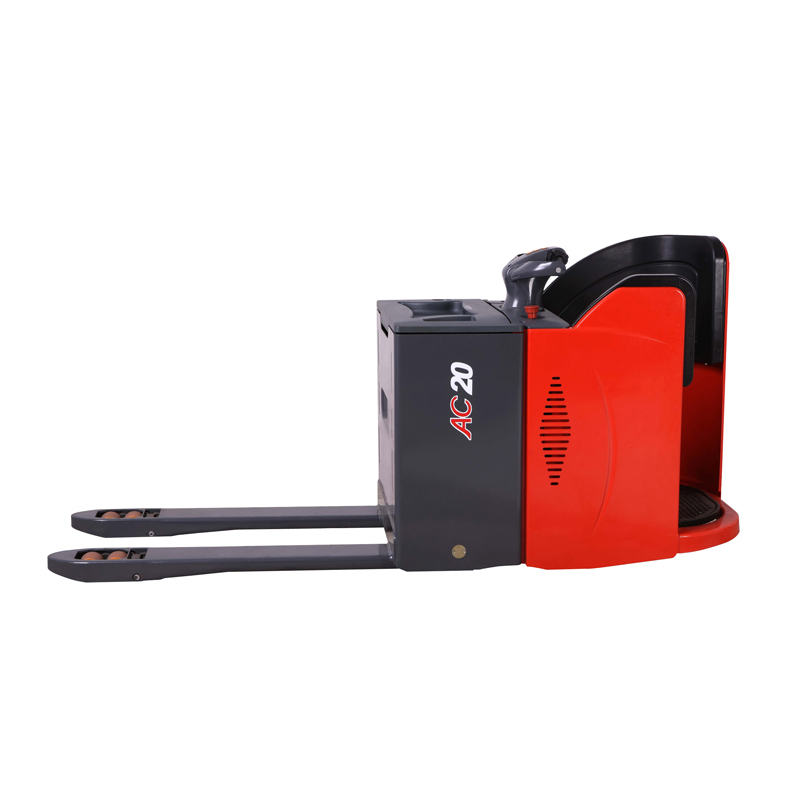

Name:CBD20-490 Ride on Power Pallet Truck
Click to view larger
  Feature:
Advantages:
1.  High running speed   Driving speed is 11Km/h
2.  EPS                Mute, energy saving, lighter
3.  AC Driving Lystem    Low noise, quiet, without carbon brush and free maintenance.
4.  Electric Lifting       Easily in and out of the double tray.
5.  AC Controller       Stepless , stong power, multiple automatic protection.
6.  Excellent Design     Easily in and out of the double tray.
7.  Intelligent Control    Curve automatically show down, more safety.
8.  Safer              Surrounded by half a cockpit, Care for your safety.
  Specifications:
Feature 单位
Model   CBD20
Configuration No.   490
Load capacity kg 2000
Load center mm 600
Wheel base mm 1569
Operating type
Walkie  /  Stand On
Wheels
Wheels type   PU
Wheel quantity
Driving wheel/Balance wheel /Bearing wheel
  1/2/4
Driving wheel size mm 248×75
Balance wheel size mm 84×80
(双轮/Double wheels
Bearing wheel size mm 140×60
Dimension
Min.fork lowered  height mm 85
Max.fork lifting height mm 205
Max.lifting height mm 120
Overall fork width mm 550/600/685
Fork length mm 1150/1200
Fork width mm 165
Fork thickness mm 75
Overall length mm 2465
Overall width mm 790
Overall height(With handle) mm 1170
Overall height(Without handle) mm -
Min.Turning radius mm 2278
Min.Aisle width for pallets 800×1200 mm 2568
Min.Aisle width for pallets 1000×1200 mm 2589
Performance
Travel speed,laden/unladen km/h 10/10
Lift speed,laden/unladen mm/s 20/25
Lowering speed,laden/unladen mm/s 40/30
Gradeability,laden/unladen % 15/10
Electrical configuration
 Drive motor  KW AC 3
Lift motor   KW DC 1.2
Steering motor KW DC 0.15
Battery voltage / capacity V/Ah 24/320
Brake   Electromagnetic / Regenerative
Controller   CURTIS 1234
Weight
Battery weight kg 288
Service weight with battery kg 968
